3/4 Inch O-Seal Straight Thread Connector Fitting

Name: 3/4 Inch O-Seal Straight Thread Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SOS-e7360b
Price: 29.99 USD
Availability: OutOfStock

SKU:SOS-e7360b

Enhance safety and efficiency with the 3/4 Inch O-Seal Straight Thread Connector Fitting. Designed for precision and durability.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

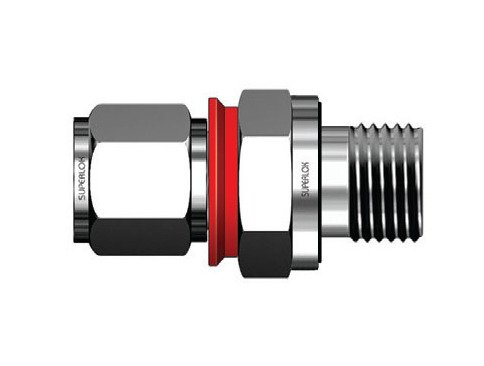

The SOSCI Series 3/4 Inch O-Seal Straight Thread Connector Fitting is designed to connect fractional tubes to female straight threads with precision and reliability. Crafted from high-quality materials including Alloy 625, Stainless Steel, and more, this fitting ensures durability and performance in various environments. Featuring i-Fitting® components and a patented check ring for optimal compression, this fitting enhances safety, efficiency, and cost-effectiveness in high-pressure applications. With dimensions meeting industry standards and a design that prevents over- or under-tightening, this connector is ideal for institutional and government procurement needs.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

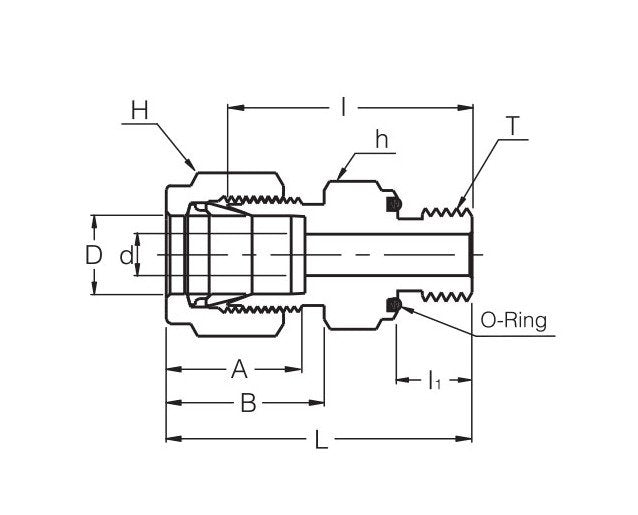

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

24.38 mm

Technical Specs Dimension B

21.84 mm

Technical Specs Dimension I

42.16 mm

Technical Specs Dimension I1

14.22 mm

Technical Specs Dimension L

52.32 mm

Technical Specs Material

Technical Specs Minimum Dimension D

15.75 mm

Technical Specs O Ring Uniform Size Number

-215

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Straight Thread T U

1-1/16-12 mm

Technical Specs Tube Outside Diameter D

3/4 in

Technical Specs Width Across Flat H

1-1/8 in

3/4 Inch O-Seal Straight Thread Connector Fitting
