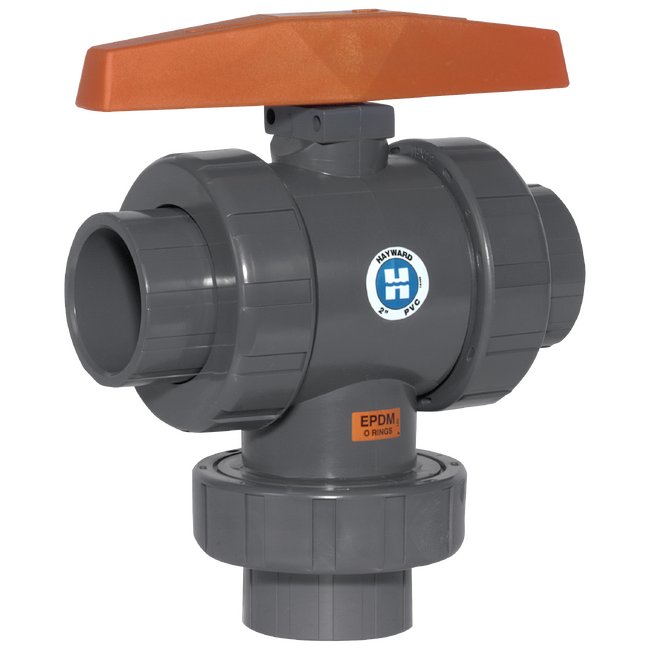

3/4 Inch PVC 3-Way True Union Ball Valve with Flanged End Connections
3/4 Inch PVC 3-Way True Union Ball Valve with Flanged End Connections
SKU:TRU-8f3c95
High-performance 3/4" PVC 3-Way True Union Ball Valve with EPDM o-rings, ideal for precise flow control in various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
3/4 Inch PVC 3-Way True Union Ball Valve with Flanged End Connections
$29.99
Quantity: 1
Claim Your Seller Account
3/4 Inch PVC 3-Way True Union Ball Valve with Flanged End Connections
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

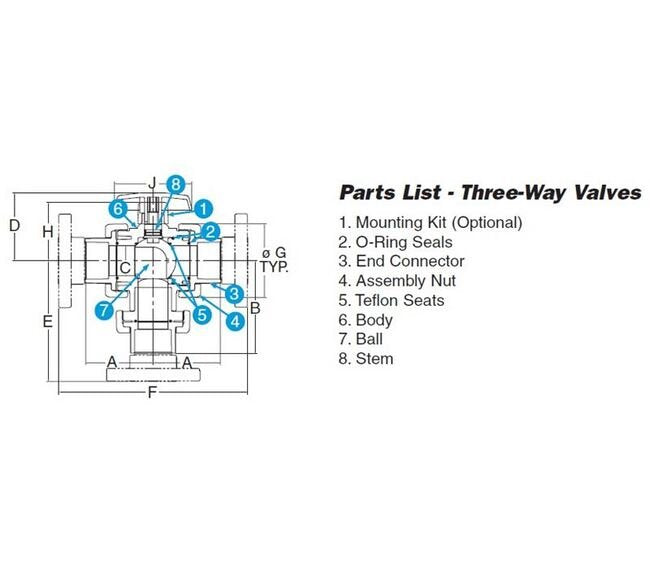

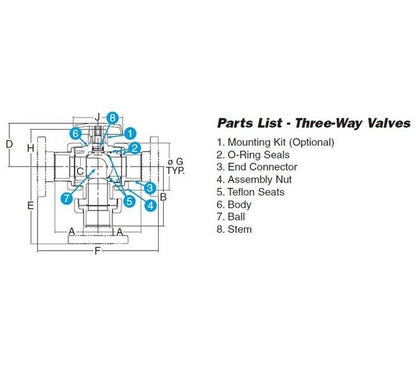

The 3/4" PVC 3-Way True Union Ball Valve with EPDM o-rings and flanged end connections from the TW Series is designed for versatile flow configurations. With a Cv Factor of 7, this valve offers reliable performance and precise control. Its sturdy PVC construction and EPDM seals ensure durability and compatibility with a variety of applications. The valve's compact design, with dimensions A: 2.62 in, B: 3.57 in, C: 0.75 in, D: 2.97 in, E: 4.60 in, F: 7.50 in, G: 2.63 in, H: 2.82 in, and J: 3.50 in, makes installation easy and space-efficient.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
2.62 in | 66.42 mm
Specifications B
3.57 in | 90.68 mm
Specifications Body Material
PVC
Specifications C
0.75 in | 19.05 mm
Specifications Cv Factor
7
Specifications D
2.97 in | 75.44 mm
Specifications E
4.60 in | 116.84 mm
Specifications End Connection
Flanged
Specifications F
7.50 in | 190.50 mm
Specifications G
2.63 in | 66.80 mm
Specifications H
2.82 in | 71.63 mm
Specifications J
3.50 in | 88.90 mm
Specifications Seals
EPDM
Specifications Size
3/4"
