3/4 Inch SSWCI Tube Socket Weld Connector Fitting
3/4 Inch SSWCI Tube Socket Weld Connector Fitting
SKU:SSW-c4605f
High-quality 3/4 Inch Tube Socket Weld Connector Fitting for reliable fractional tube connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
3/4 Inch SSWCI Tube Socket Weld Connector Fitting
$29.99
Quantity: 1
Claim Your Seller Account
3/4 Inch SSWCI Tube Socket Weld Connector Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

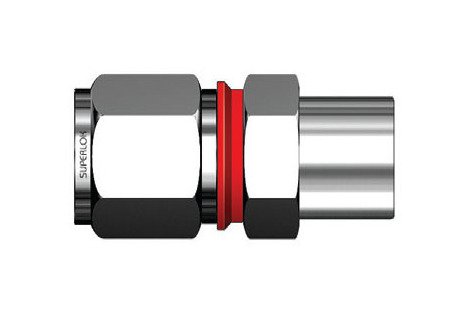

The 3/4 Inch SSWCI Tube Socket Weld Connector Fitting is designed to connect fractional tubes with precision and reliability. Made from high-quality materials such as Alloy 625, Stainless Steel, and more, this fitting ensures durability and longevity in various environments. Its innovative i-Fitting® components, including a built-in gap gauge, improve installer safety, increase productivity, and reduce costs. Ideal for valve connections, this industry-changing design by BMT meets the highest standards in the industry.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

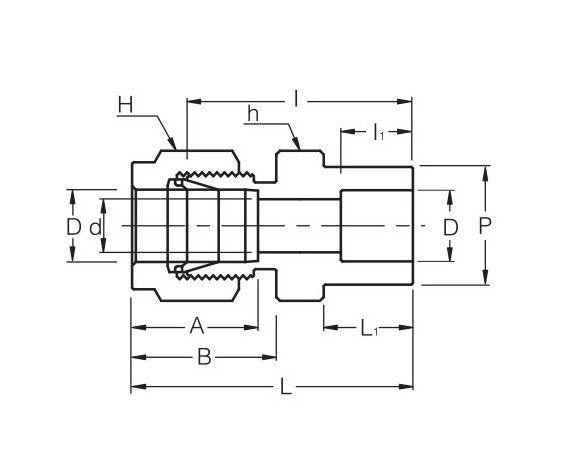

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.38 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
33.27 mm
Technical Specs Dimension I1
14.22 mm
Technical Specs Dimension L
43.43 mm
Technical Specs Dimension L1
11.93 mm
Technical Specs Dimension P
26.67 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.74 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/4 in
Technical Specs Width Across Flat H
1-1/8 in
