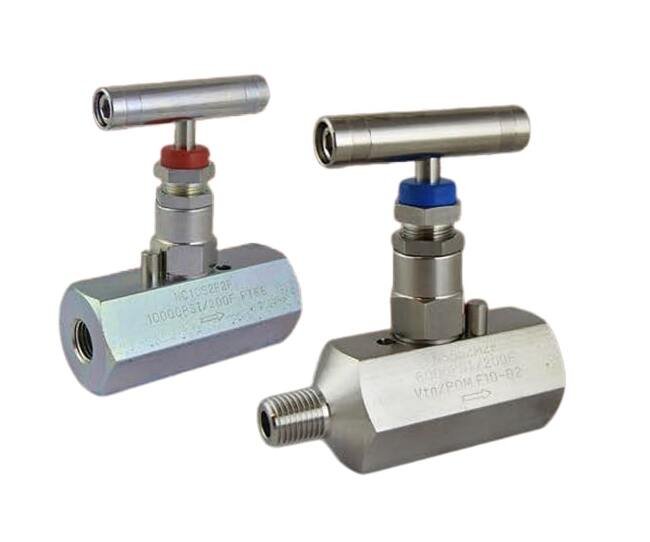

3/4 Inch Standard Pattern Needle Valve - NPT Female x Female

Name: 3/4 Inch Standard Pattern Needle Valve - NPT Female x Female
Brand: Superlok-Mako Products LLC
SKU: STA-a5a5d2
Price: 69.99 USD
Availability: OutOfStock

SKU:STA-a5a5d2

High-pressure 3/4" Standard Pattern Needle Valve - ASME & NACE Compliant

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

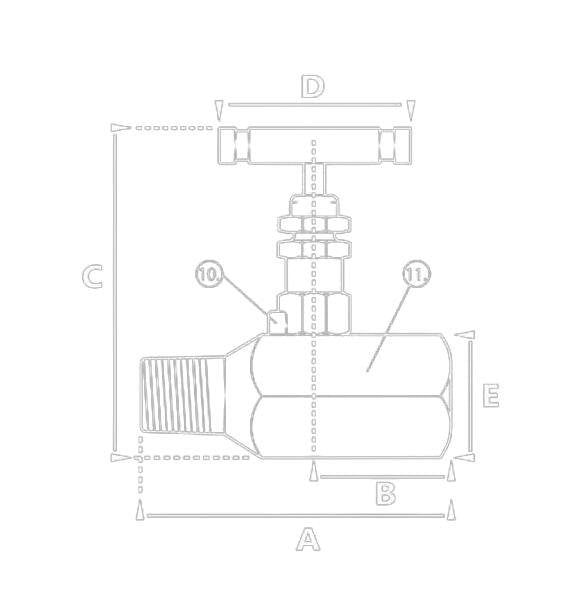

The 3/4 Inch Standard Pattern Needle Valve is built to meet the demanding needs of industries requiring precision flow control. Crafted from stainless steel with a hard seat, this valve ensures durability and reliability under high pressures up to 10000 psi. Conforming to American Society of Mechanical Engineers (ASME) B1.20.1 and NACE standards, it guarantees performance excellence. With dimensions of 3.23" (A), 1.62" (B), 3.54" (C), 2.24" (D), and 1.26" (E), it offers precise control in various applications.

Product Specifications

Features Features

Threads Conform to ASME B1.20.1

Technical Specs Dimension A

3.23 in

Technical Specs Dimension B

1.62 in

Technical Specs Dimension C

3.54 in

Technical Specs Dimension D

2.24 in

Technical Specs Dimension E

1.26 in

Technical Specs Industry Standards

American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant

Technical Specs Material

Stainless

Technical Specs Seat Material

Hard Seat

Technical Specs Thread Size

3/4 in

Technical Specs Thread Type

Female x Female National Pipe Thread (NPT)

Technical Specs Working Pressure

10000 psi

3/4 Inch Standard Pattern Needle Valve - NPT Female x Female
