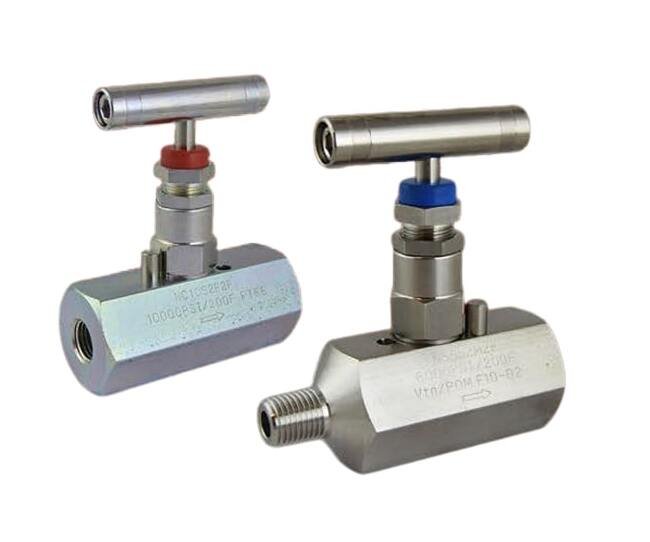

3/4 Inch Standard Pattern Needle Valve - NPT Female x Female Thread

Name: 3/4 Inch Standard Pattern Needle Valve - NPT Female x Female Thread
Brand: Superlok-Mako Products LLC
SKU: STA-3625db
Price: 69.99 USD
Availability: OutOfStock

SKU:STA-3625db

Experience precision and reliability with the 3/4 Inch Standard Pattern Needle Valve for industrial applications.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

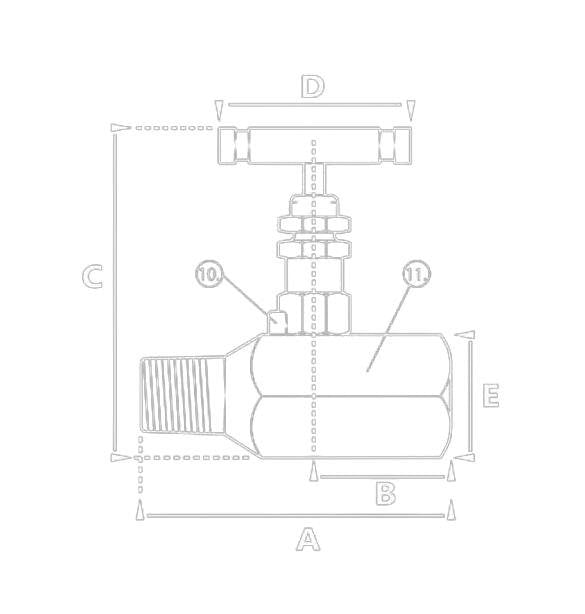

Upgrade your industrial operations with the 3/4 Inch Standard Pattern Needle Valve. Crafted from durable carbon material, this valve ensures optimal performance with a working pressure of 6000 psi. The PolyOxyMethylene (POM) Soft Seat enhances sealing efficiency, meeting ASME and NACE standards for reliability. With dimensions A: 3.23 in, B: 1.62 in, C: 3.54 in, D: 2.24 in, E: 1.26 in, and threads conforming to ASME B1.20.1, this valve is a robust choice for precision control.

Product Specifications

Features Features

Threads Conform to ASME B1.20.1

Technical Specs Dimension A

3.23 in

Technical Specs Dimension B

1.62 in

Technical Specs Dimension C

3.54 in

Technical Specs Dimension D

2.24 in

Technical Specs Dimension E

1.26 in

Technical Specs Industry Standards

American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant

Technical Specs Material

Carbon

Technical Specs Seat Material

PolyOxyMethylene (POM) Soft Seat

Technical Specs Thread Size

3/4 in

Technical Specs Thread Type

Female x Female National Pipe Thread (NPT)

Technical Specs Working Pressure

6000 psi
