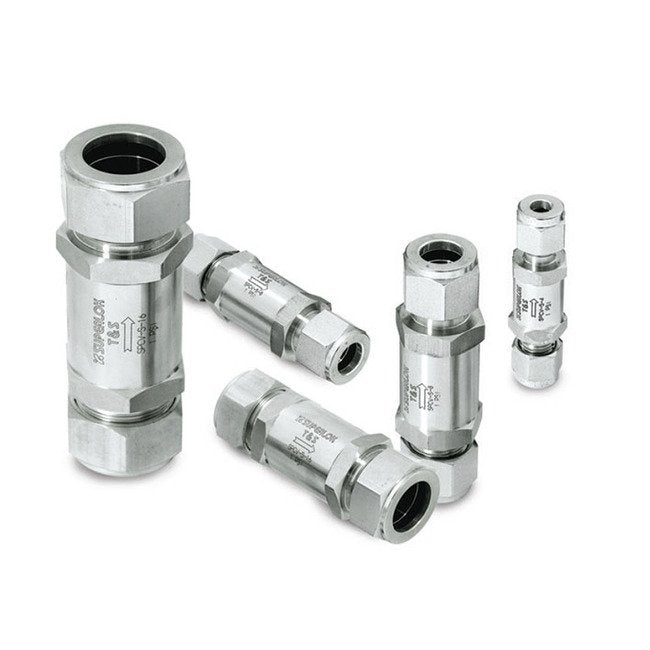

3/4 Inch SUPERLOK End Connections Check Valve
3/4 Inch SUPERLOK End Connections Check Valve
SKU:SPC-98ff6e
Rugged 3/4" Check Valve for precise flow control in industrial operations. Durable materials & high-pressure rating.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
3/4 Inch SUPERLOK End Connections Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
3/4 Inch SUPERLOK End Connections Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPCV Series 3/4 Inch SUPERLOK End Connections Check Valve is a reliable solution for controlling flow in industrial settings. With a pressure rating of 0 to 3000 psig and a temperature rating of 375°F, this valve is designed to withstand demanding conditions. Made from high-quality materials like 316 Stainless Steel and Brass, it ensures durability and longevity. The valve features fixed cracking pressure and undergoes rigorous testing for performance and reliability, meeting the highest industry standards.
Product Specifications
Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

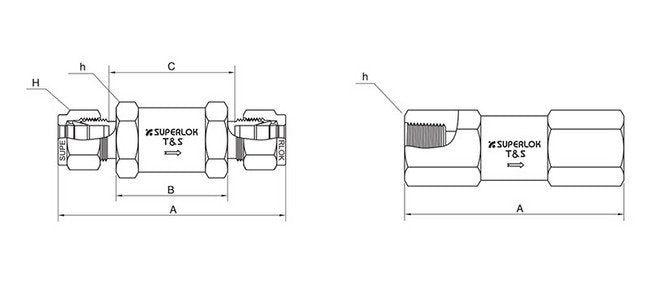

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
99.78 mm
Technical Specs Dimension B
56.1 mm
Technical Specs Dimension C
51.1 mm
Technical Specs Dimension H
28.57 mm
Technical Specs End Connections
3/4 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
4.50
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
