3/4 Inch Tube Union Elbow - SUEI Series
3/4 Inch Tube Union Elbow - SUEI Series
SKU:SUE-c99608
Premium 3/4 Inch Tube Union Elbow for optimal compression and safety in high-pressure environments.Industry-changing design by BMT.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
3/4 Inch Tube Union Elbow - SUEI Series
$29.99
Quantity: 1
Claim Your Seller Account
3/4 Inch Tube Union Elbow - SUEI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

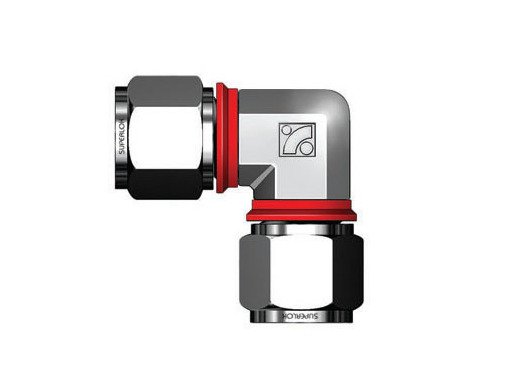

The SUEI Series 3/4 Inch Tube Union Elbow is a high-quality connector designed for fractional tubes. Made from a range of premium materials including Alloy 625, Alloy 825, and Stainless Steel, it features i-Fitting® components for perfect compression, ensuring safety in high-pressure environments. With industry-changing patented design by BMT, this union elbow enhances productivity, reduces costs, and is applicable to valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

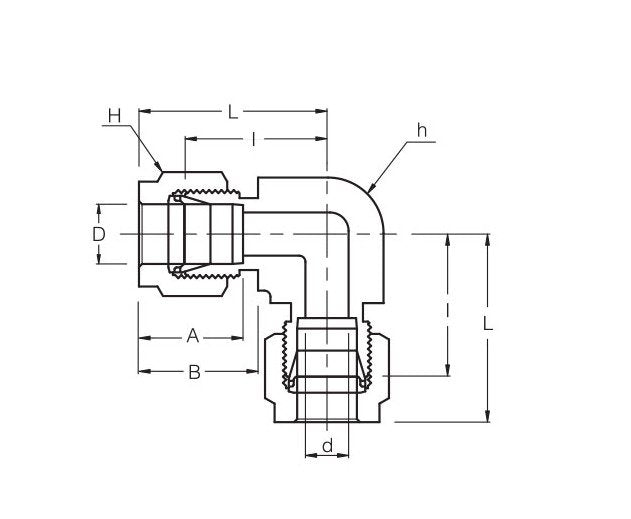

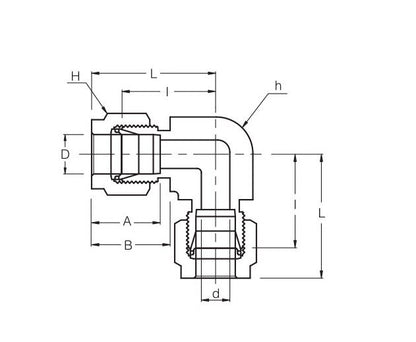

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.38 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
29.71 mm
Technical Specs Dimension L
39.87 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.74 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/4 in
Technical Specs Width Across Flat H
1-1/8 in
