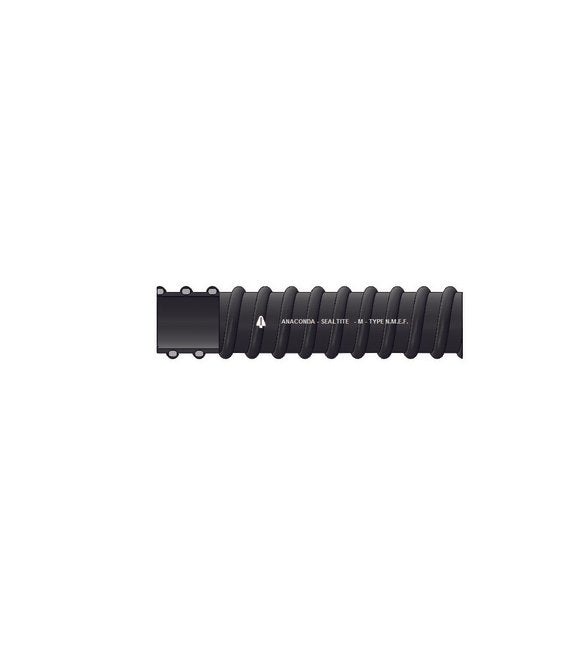

3/4" NMEF Non-Metallic Mechanical Protection Tubing
3/4" NMEF Non-Metallic Mechanical Protection Tubing
SKU:LIQ-bc5ba2
Durable 3/4" NMEF Non-Metallic Mechanical Protection Tubing with crush-resistant construction, CSA certification, and RoHS/WEEE compliance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
3/4" NMEF Non-Metallic Mechanical Protection Tubing
$89.99
Quantity: 1
Claim Your Seller Account
3/4" NMEF Non-Metallic Mechanical Protection Tubing
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3/4" NMEF Non-Metallic Mechanical Protection Tubing is a premium solution for maintaining electrical safety and integrity. Constructed with rigid non-metallic reinforcement embedded in a flexible PVC wall, this tubing offers exceptional crush and corrosion resistance. Its sunlight-resistant, flame-retardant thermoplastic PVC composition withstands heat, oil, and chemical breakdown, ensuring durability in diverse environments. With CSA certification and RoHS/WEEE compliance, this tubing meets stringent industry standards, making it an ideal choice for industrial applications requiring tight bend radii.
Product Specifications
Application
OEM machine buildingIndustrial applications where tight bend radii are required.
Installation
Tubing used with fittings for non-metallic tubing Type B that comply with the requirements of C22.21 No. 227.3-05. IP 66/67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -0ºF to +176ºF (-18ºC to +80ºC) Wet: +60°C; Oil 70°C. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 1/4" through 2".
Specifications Color
BLACK
Specifications Connector Type
Type B
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Electrical Trade Size
3/4 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Bend Radius
4.25 in
Specifications Inside Diameter
.820-.840 in
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft
Specifications Naed Pin
3620200
Specifications Outside Diameter
1.030-1.050 in
Specifications Standard Length Coil
100 ft
