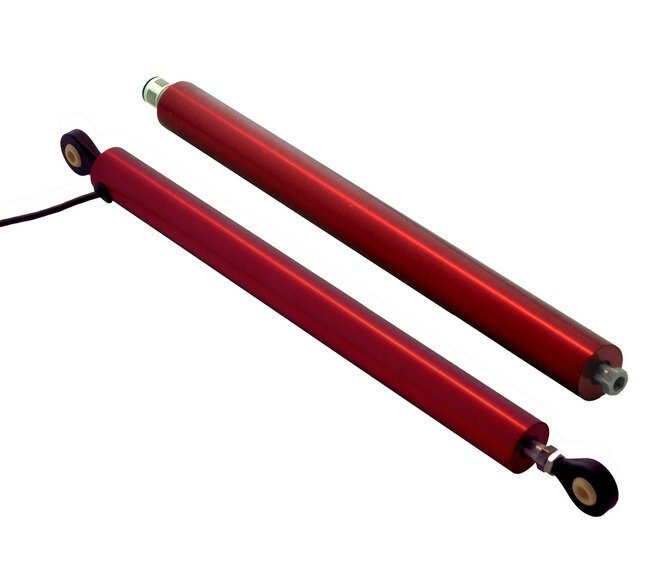

3/4'' OD Linear Potentiometer Sensor, 3'' Stroke, 0-10V DC Output
3/4'' OD Linear Potentiometer Sensor, 3'' Stroke, 0-10V DC Output
SKU:LIN-dcf360
Upgrade to Alliance Sensors Group's 3/4'' OD Linear Potentiometer for accurate linear position sensing.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
3/4'' OD Linear Potentiometer Sensor, 3'' Stroke, 0-10V DC Output
$89.99
Quantity: 1
Claim Your Seller Account
3/4'' OD Linear Potentiometer Sensor, 3'' Stroke, 0-10V DC Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your linear position sensing with the 3/4 Inch OD Linear Potentiometer Replacement Sensor. With a stroke of 3 inches and precise 0-10V DC output, this sensor by Alliance Sensors Group ensures high accuracy (<0.25% of full scale) and durability with its aluminum body. Operating temperature range from -40 to 105 ºC, CE approval, and radial cable termination make it ideal for industrial applications requiring reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
3 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
3 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
