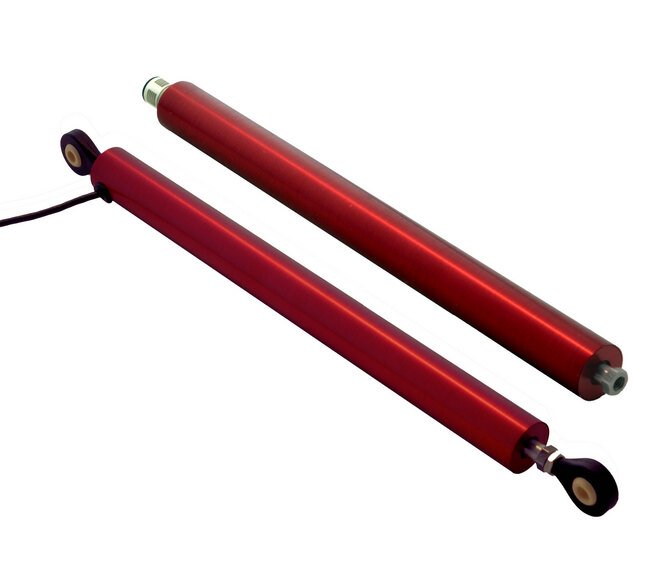

3/4" OD Linear Potentiometer Sensor, 3" Stroke, 4-20mA Output
3/4" OD Linear Potentiometer Sensor, 3" Stroke, 4-20mA Output
SKU:LIN-1a6aed
Get precise position feedback with our 3/4" Linear Potentiometer Sensor - ideal for industrial use.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
3/4" OD Linear Potentiometer Sensor, 3" Stroke, 4-20mA Output
$69.99
Quantity: 1
Claim Your Seller Account
3/4" OD Linear Potentiometer Sensor, 3" Stroke, 4-20mA Output
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision sensing with the 3/4-inch Outside Diameter Linear Potentiometer Replacement Sensor. This sensor, featuring a 3-inch stroke and 4 to 20 milliampere output current, is designed to deliver accurate position feedback. With European Conformity (CE) Approval and an aluminum body construction, it ensures reliability and durability. The sensor's -20 to 85 °C temperature range, <0.25% linearity, and 0.025% resolution make it ideal for industrial applications requiring high-performance linear displacement sensing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
3 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
3 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
