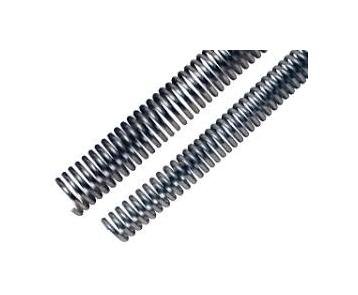

3/4" Spiral Guard Wrap - HDPE Hose Protection
3/4" Spiral Guard Wrap - HDPE Hose Protection
SKU:HOS-0b8d5a
Protect hoses with 3/4" Spiral Guard Wrap - HDPE material, superior abrasion resistance, easy installation, ideal for hydraulic and pneumatic applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
3/4" Spiral Guard Wrap - HDPE Hose Protection
$79.99
Quantity: 1
Claim Your Seller Account
3/4" Spiral Guard Wrap - HDPE Hose Protection
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

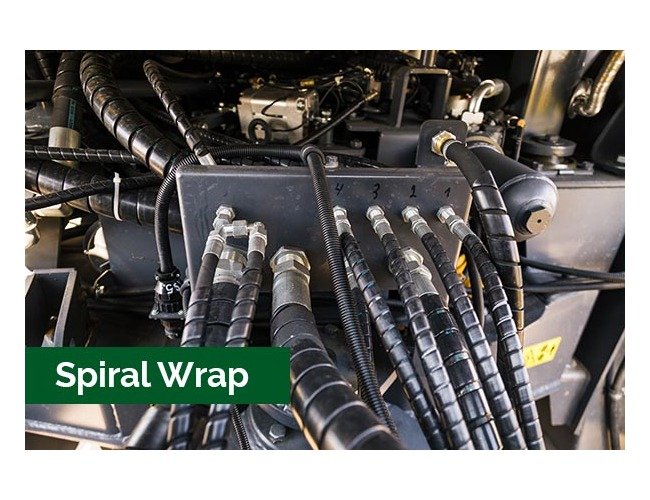

The 3/4" Spiral Guard Wrap offers an economical and durable solution to protect hydraulic and pneumatic hoses, cables, wires, and ropes. Made from high-density polyethylene, it ensures superior resistance against abrasion, cuts, crushing, UV, and various hazards. With a wide working temperature range and easy installation, this spiral guard wrap enhances the longevity and performance of hose assemblies, reducing maintenance costs and increasing uptime. Available in Safety Orange color, this product is ideal for both single hose protection and bundling multiple lines together.
Product Specifications
Availability Availability
Available in diameters from 3/8" (10mm) to 5-1/2" (140mm)Spiral Guard Wrap is a stock product, allowing for fast turnaround timeStandard color is Black, other availableStandard package depends on Spiral ID
Characteristics Characteristics
High-quality HDPE provides superior protection against mechanical wear and abrasion, crushing, and cut-through hazardsResistant to acids, oils, solvents, water, and UV-impingement, rejects dust & dirtCapable of bundling multiple lines together, providing simultaneous protectionRounded profile provides non-abrasive edges which will not damage hosesProtect assemblies from premature wear, reduce maintenance expenditures, and increase uptime
Material Composition And Added Value Material Composition And Ad
High-density Polyethylene - Very versatile system protectionSpiral-formed protection system - Install without disconnecting linesWear, cut, and crush- resistant polymer - Provides excellent line visibilityVarious colors available - SGW is recyclable and reusable
Specifications Color
Safety Orange
Specifications Inside Diameter
0.688 to 0.875 in
Specifications Length Per Box
100 ft
Specifications Size
12 in
Specifications Spiral Inside Diameter
3/4 in
Specifications Working Temperature Range
-60 to 210 ºF | -50 to 100 ºC
