3/4" US Style Socket Weld Check Valve, 3.50 psi Cracking Pressure, Stainless Steel

Name: 3/4" US Style Socket Weld Check Valve, 3.50 psi Cracking Pressure, Stainless Steel
Brand: Check-All Valve Mfg. Co.
SKU: USS-e63847
Price: 129.99 USD
Availability: OutOfStock

SKU:USS-e63847

High-quality 3/4" US Style Socket Weld Check Valve with customizable cracking pressures and seat materials.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

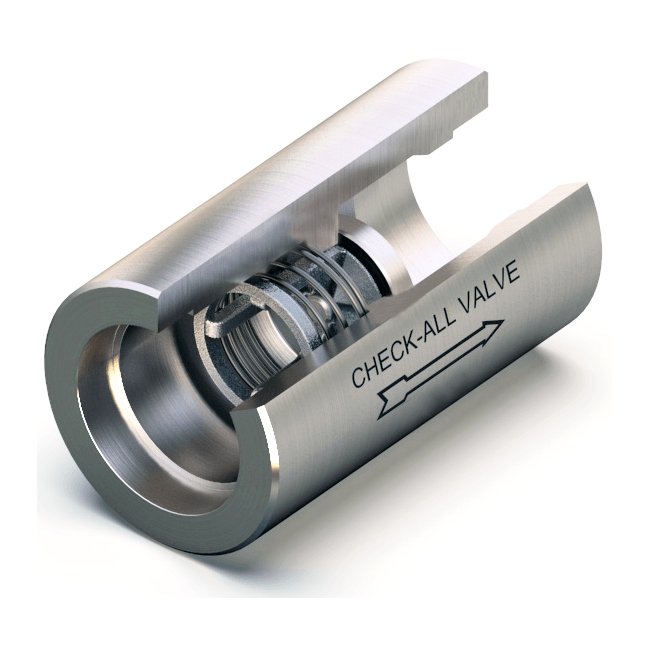

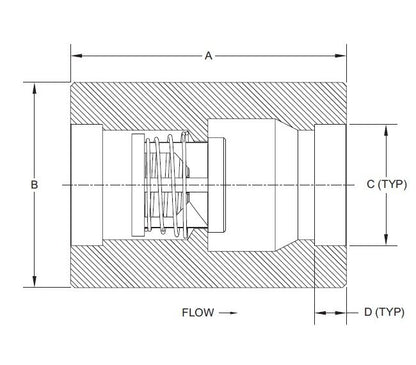

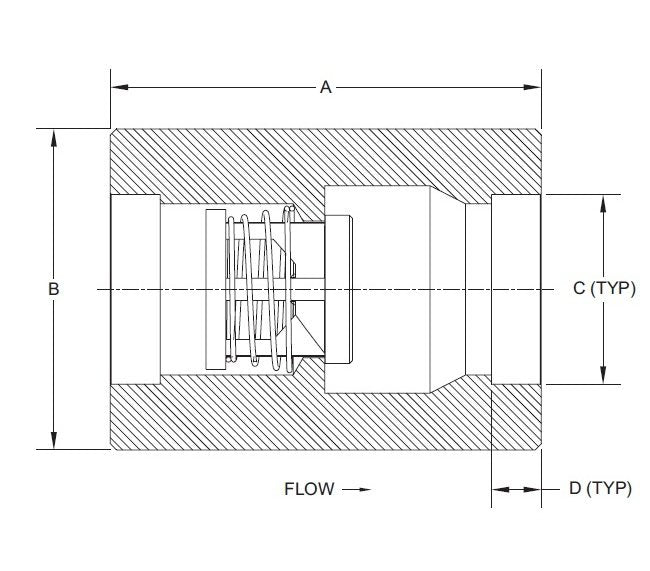

The 3/4" US Style Socket Weld Check Valve offers a one-piece machined body for minimal pressure drop. Featuring Check-All® trim, this valve provides a wide range of seat materials and cracking pressures. Built to ASME/ANSI B16.11 dimensions, it doubles as a low-pressure relief valve or vacuum breaker, with options for custom spring settings.

Product Specifications

Caution

Please take sufficient measures when welding to prevent heat build-up and possible damage to the valve seat.

Note

Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.

Specifications Body Material

Specifications Body Material Availability

Specifications Certifications

European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe Size

3/4 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

5000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

T = FEP Encapsulated Spring (Contact the factory for more options)

Specifications Spring Material

Specifications Standard Cracking Pressure

3.50 psi

Specifications Valve Style

3/4" US Style Socket Weld Check Valve, 3.50 psi Cracking Pressure, Stainless Steel
