3/4 x 1/2 Inch Multi-Port Needle Valve
3/4 x 1/2 Inch Multi-Port Needle Valve
SKU:MUL-64b734
High-pressure 3/4 x 1/2 Inch Multi-Port Needle Valve, ASME B1.20.1 & NACE Compliant, stainless steel, 10000 psi
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3/4 x 1/2 Inch Multi-Port Needle Valve
$49.99
Quantity: 1
Claim Your Seller Account
3/4 x 1/2 Inch Multi-Port Needle Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

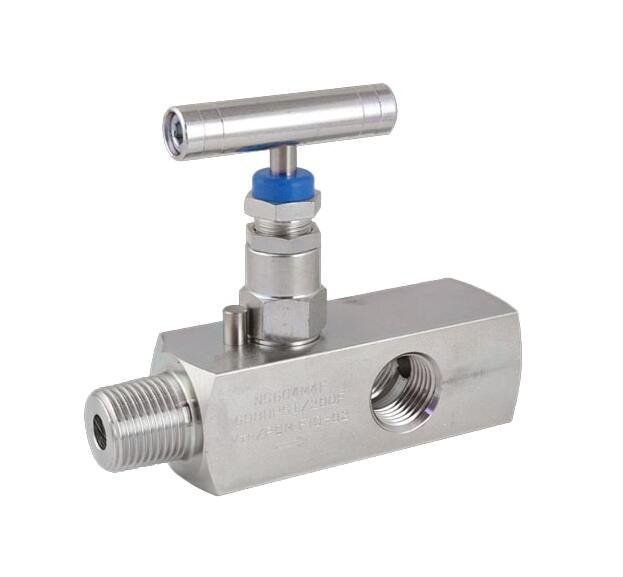

The 3/4 x 1/2 Inch Thread Size Multi-Port Needle Valve is a precision-engineered component designed for high-pressure applications, with a working pressure of 10000 psi. Crafted from stainless steel with a hard seat, it ensures durable performance and reliable sealing. Compliant with American Society of Mechanical Engineers (ASME) B1.20.1 and National Association of Corrosion Engineers (NACE) standards, this valve guarantees top-tier quality and safety. Its male x female National Pipe Thread (NPT) enables secure connections, while its compact design, measuring 4.45 x 2.5 x 1.42 inches, makes it ideal for confined spaces.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1
Technical Specs Dimension A
4.45 in
Technical Specs Dimension B
2.5 in
Technical Specs Dimension C
1.42 in
Technical Specs Dimension D
2.4 in
Technical Specs Dimension E
3.54 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Stainless
Technical Specs Seat Material
Hard Seat
Technical Specs Thread Size
3/4 x 1/2 in
Technical Specs Thread Type
Male x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
10000 psi
