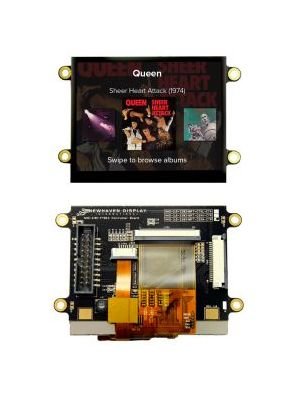

• 3.5" EVE2 TFT Resistive LCD Module - Image 1
1 1
Marsh Electronics, Inc. →

3.5" EVE2 TFT Resistive LCD Module

3.5" EVE2 TFT Resistive LCD Module

EVE-920993

Vivid 3.5" TFT Resistive LCD Module, 320x240 resolution, FT812 controller, RoHS compliant.

$45.99
$45.99
Sale

Initiate Order

3.5" EVE2 TFT Resistive LCD Module

3.5" EVE2 TFT Resistive LCD Module

$45.99

Quantity: 1

Claim Your Seller Account

3.5" EVE2 TFT Resistive LCD Module

3.5" EVE2 TFT Resistive LCD Module

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 3.5 Inch EVE2 Thin Film Transistor (TFT) Resistive LCD Module offers a vibrant display with a resolution of 320 x 240 pixels in Transmissive mode. Featuring a 12:00 view, red, green, blue (RGB) graphics, and a proprietary FT812 controller, this module ensures crisp visuals at a voltage supply of 3.3V. Compliance includes RoHS, REACH, and lead-free standards, making it ideal for consumer and institutional applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
63.9 mm
Dimension Outline Width
92 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT812
Specifications Country Of Origin
China
Specifications Diagonal Size
3.5 in | 88.90 mm
Specifications Display Format
320 x 240 Pixels | Quarter Video Graphics Array (QVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Standard
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Resistive
Specifications View
12:00
Specifications Voltage Supply
3.3 V
