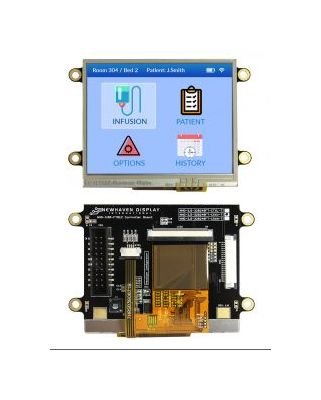

3.5 Inch Capacitive Graphic TFT LCD Display Module
3.5 Inch Capacitive Graphic TFT LCD Display Module
SKU:EVE-e4c9a5
Vivid 3.5" capacitive touch TFT LCD module with 320x240 pixels, RGB color, SPI interface, and RoHS compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
3.5 Inch Capacitive Graphic TFT LCD Display Module
$29.99
Quantity: 1
Claim Your Seller Account
3.5 Inch Capacitive Graphic TFT LCD Display Module
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3.5 Inch Capacitive Graphic TFT LCD Display Module from the EVE2 Thin Film Transistor (TFT) Modules series offers a vibrant 320 x 240 pixel display in Red, Green, Blue (RGB) color. With a standard transmissive display type and white LED backlight, this module is perfect for projects requiring crisp visuals. Featuring a capacitive touch panel, SPI interface, and FT813 controller, it provides intuitive interaction. This RoHS-compliant module is Lead (Pb) free and meets REACH standards, ensuring environmental responsibility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
63.9 mm
Dimension Outline Width
92 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT813
Specifications Country Of Origin
China
Specifications Diagonal Size
3.5 in | 88.90 mm
Specifications Display Format
320 x 240 Pixels | Quarter Video Graphics Array (QVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Standard
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Capacitive
Specifications View
12:00
Specifications Voltage Supply
3.3 V
