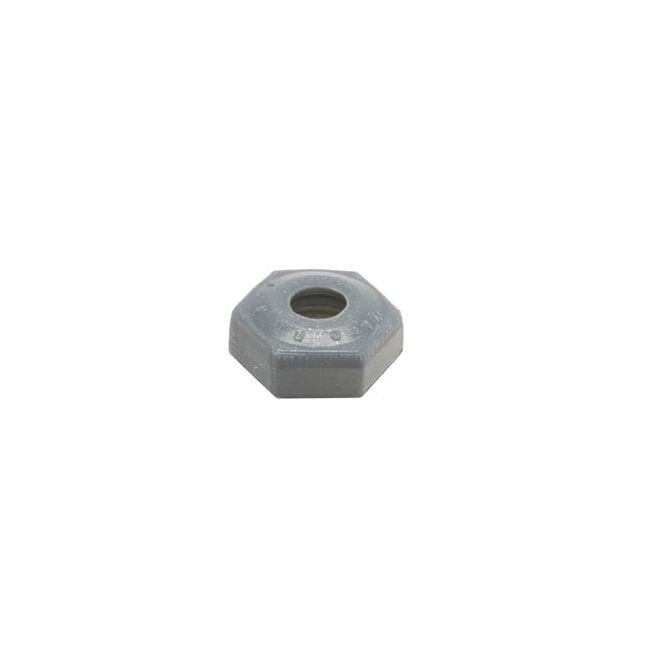

3/8-32 UNEF-2B Rotary Switch Boot

Name: 3/8-32 UNEF-2B Rotary Switch Boot
Brand: ZAGO Manufacturing
SKU: SWI-865d48
Price: 12.99 USD
Availability: OutOfStock

SKU:SWI-865d48

Ensure switch protection with the 3/8-32 UNEF-2B Rotary Switch Boot. Resistant to elements, perfect for aerospace, marine, and more.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3/8-32 UNEF-2B Rotary Switch Boot is expertly crafted from silicone to provide unparalleled protection for standard switches. With a hex base width of 0.375 inches and a boot height of 0.23 inches, it offers IP68 enclosure protection under normal conditions. Resistant to fungus, acids, ozone, and more, this boot is ideal for aerospace, industrial, marine, medical, and military applications. Keep switches safeguarded from water, oil, dirt, and harsh environments with this reliable solution.

Product Specifications

Specifications Applications

Specifications Base Width Hex

0.375 in

Specifications Boot Height

0.23 in

Specifications Bushing Thread Size Unified

3/8-32 UNEF-2B

Specifications Color

Black | Gray

Specifications Durometer

Specifications Enclosure Protection

IP68 (Under Normal Conditions)

Specifications External Pressure Range

15 psi

Specifications Internal Pressure Range

15 psi

Specifications Material

Silicone

Specifications Mounting Nut

Corrosion Resistant - Nickel Plated Brass

Specifications Note

Designed to protect from water, oil, sand, dust, dirt, humidity, precipitation and other contaminants.

Specifications Resistant To

Specifications Temperature Range

-93 to +400 ÂºF

Specifications Thread Type

Unified National Coarse Thread (UNC)
