3/8 in DC LVDT Sensor - 2 in Stroke, 0-10 V DC Output, Stainless Steel Body
3/8 in DC LVDT Sensor - 2 in Stroke, 0-10 V DC Output, Stainless Steel Body
SKU:DCT-036a79
Reliable 3/8 in DC LVDT Sensor with 2 in Stroke, 0-10 V DC Output. CE Approved, High Precision.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
3/8 in DC LVDT Sensor - 2 in Stroke, 0-10 V DC Output, Stainless Steel Body
$279.99
Quantity: 1
Claim Your Seller Account
3/8 in DC LVDT Sensor - 2 in Stroke, 0-10 V DC Output, Stainless Steel Body
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

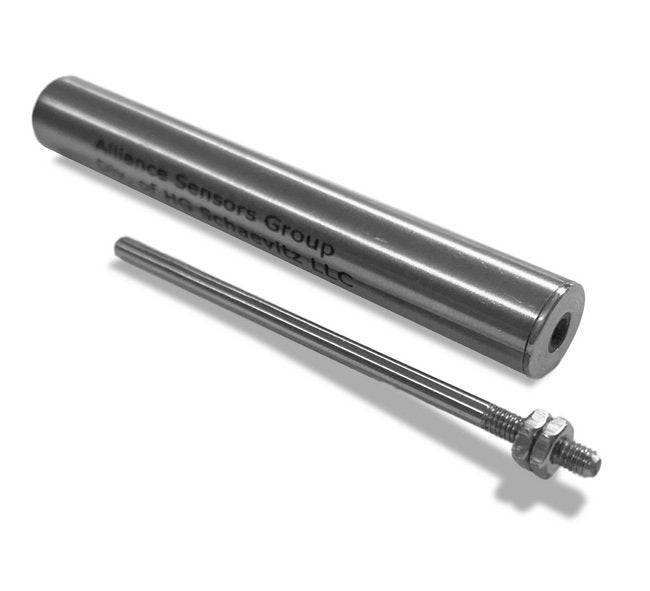

The 3/8 inch Outside Diameter Linear Variable Differential Transformer (LVDT) Sensor is a versatile solution equipped with a 2-inch stroke and 0 to 10 Volt DC output. Crafted with a durable stainless steel body, this sensor ensures reliable performance even in extreme temperatures ranging from -40 to 105 °C. With exceptional linearity (<0.25% of Full Scale) and high resolution (0.025% of Full Scale), this sensor provides precise measurements. Approved for European Conformity (CE), it's an ideal replacement for linear potentiometers, offering a robust cable termination, fast 300 Hz update rate, and axial cable type for easy installation.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/8 in
Technical Specs Range
2 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
2 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
