3/8 in DC Voltage LVDT Sensor
3/8 in DC Voltage LVDT Sensor
SKU:DCT-2c6eac
Reliable 3/8 in DC Voltage LVDT Sensor for accurate measurements and easy installation.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
3/8 in DC Voltage LVDT Sensor
$79.99
Quantity: 1
Claim Your Seller Account
3/8 in DC Voltage LVDT Sensor
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

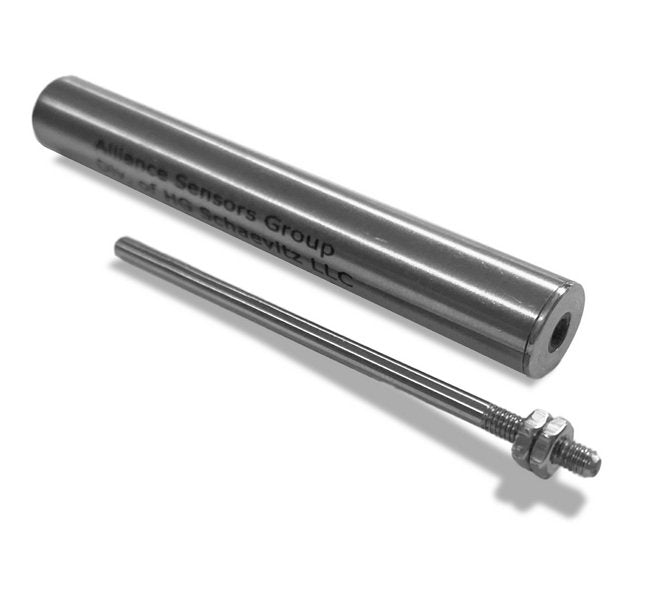

The 3/8 Inch Outside Diameter DC Voltage Linear Variable Differential Transformer (LVDT) Sensor offers precise measurements with a stroke of 0.100 inches and 0 to 10 Volt output. Engineered by Alliance Sensors Group, it ensures high accuracy, with a temperature range of -40 to 105 ºC and <0.25% linearity. This stainless steel body sensor is CE approved and features a 1m cable termination for easy installation, making it an ideal replacement for linear potentiometers in industrial applications.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/8 in
Technical Specs Range
0.100 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
0.100 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
