3/8 in Loaded U-Cup Seal

Name: 3/8 in Loaded U-Cup Seal
Brand: Pneu-Draulics Inc.
SKU: UCU-b2634d
Price: 14.99 USD
Availability: OutOfStock

SKU:UCU-b2634d

High-performance 3/8 in Loaded U-Cup Seal for rods & pistons. Ideal for -65 to +200 °F temperatures & 0-5000 psi pressures.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

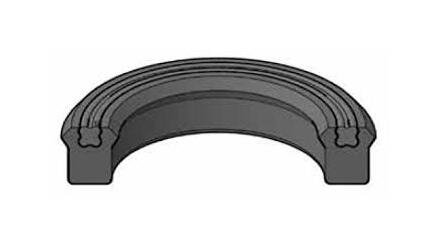

The 3/8 Inch Loaded U-Cup Seal is a high-performance sealing solution suitable for a wide range of rod and piston applications. With an inside diameter of 3/8 inches, outside diameter of 3/4 inches, and a height of 5/16 inches, this urethane seal can handle pressures ranging from 0 to 5000 psi and temperatures from -65 to +200 °F. Its U-Cup shape and compatibility with diameters up to 90 inches make it perfect for retrofitting seal grooves. Ensure superior sealing efficiency with this top-quality U-Cup seal.

Product Specifications

Technical Specs Alternate Part

461518700375-312B | U18-0.37-31B

Technical Specs Height

5/16 in

Technical Specs Inside Diameter

3/8 in

Technical Specs Outside Diameter

3/4 in

Technical Specs Package Type

Each

Technical Specs Pressure

0 to 5000 psi

Technical Specs Shape

U-Cup

Technical Specs Temperature

-65 to +200 ÂºF

3/8 in Loaded U-Cup Seal
