3/8 in SPUV Series SUPERLOK Inlet Tee Purge Valve
3/8 in SPUV Series SUPERLOK Inlet Tee Purge Valve
SKU:SPU-a51722
Compact 3/8 in SUPERLOK Inlet Tee Purge Valve, manual bleed, vent, or drain, 4000 psig, 316 SS & brass
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
3/8 in SPUV Series SUPERLOK Inlet Tee Purge Valve
$45.99
Quantity: 1
Claim Your Seller Account
3/8 in SPUV Series SUPERLOK Inlet Tee Purge Valve
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3/8 inch SPUV Series SUPERLOK Inlet Tee Purge Valve is designed for manual bleed, vent, or drain applications. Made of 316 stainless steel and brass, it offers a temperature rating of 65 to 600°F and a pressure rating of 4000 psig. With a compact design, crimped cap, and various end connections, it ensures leaktight closure and prevents accidental disassembly. Suitable for institutional procurement, it complies with federal standards and industry certifications.
Product Specifications
Application Application
SUPERLOK purge valves are manual bleed, vent, or drain valves. One-quarter turn with a wrench from finger-tight obtains leaktight closure on first makeup. Snugging with a wrench ensures closure to the rated pressure with subsequent makeups.
Caution Caution
When installing a SUPERLOK purge valve, position the vent hole to direct system fluid away from operating personnel. The vent hole rotates with the cap. changing the direction of discharge as the cap is turned. Always open purge valves slowly. These valves contain no packing, so some fluid seepage will occur when the valves are opened. operating personnel must protect themselves from exposure to system fluids.
Features Features
Compact for convenient installation.Vent hole is bled excessive liquid or gas from system lines.Cap is crimped to valve body to prevent accidental disassembly.Variety of end connections : SUPERLOK® tube fittings, NPT and ISO threads.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Pressure Rating At 100 Degree Fahrenheit F 38 Deg
4000 psig | 275 bar
Technical Data Temperature Rating
65 to 600 ºF | -54 to 315 ºC
Technical Specs Body Material
316 Stainless Steel | Brass

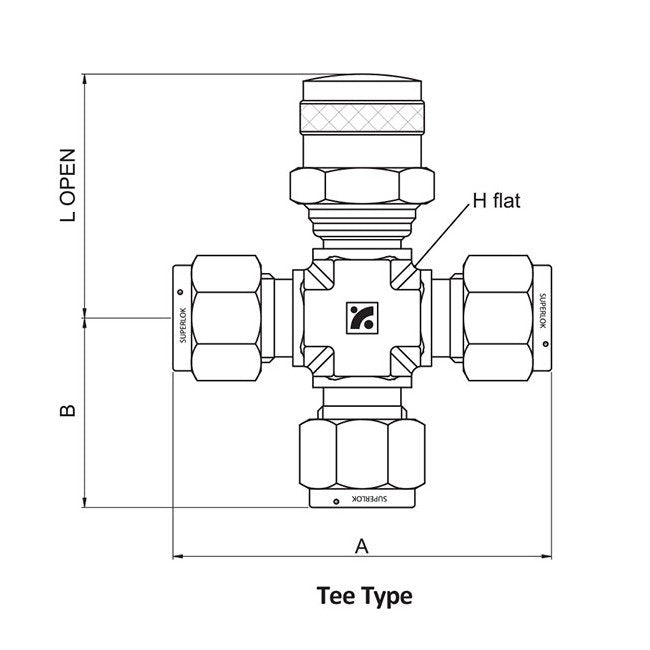

Technical Specs Dimension A
2.40 in | 61.0 mm
Technical Specs Dimension B
1.20 in | 30.5 mm
Technical Specs Dimension H
0.63 in | 15.9 mm
Technical Specs Dimension L
1.49 in | 38.0 mm
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Pattern Designator
Tee Type
Technical Specs Tube Outside Diameter
3/8 in | 10 mm
