3/8 in Tube Male Branch Tee Fitting with NPT Thread, SMBTI Series
3/8 in Tube Male Branch Tee Fitting with NPT Thread, SMBTI Series
SKU:SMB-c7bac6
Premium 3/8 in Male Branch Tee Fitting with NPT Thread for precise tube connections. Enhances safety and productivity in high-pressure settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
3/8 in Tube Male Branch Tee Fitting with NPT Thread, SMBTI Series
$29.99
Quantity: 1
Claim Your Seller Account
3/8 in Tube Male Branch Tee Fitting with NPT Thread, SMBTI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

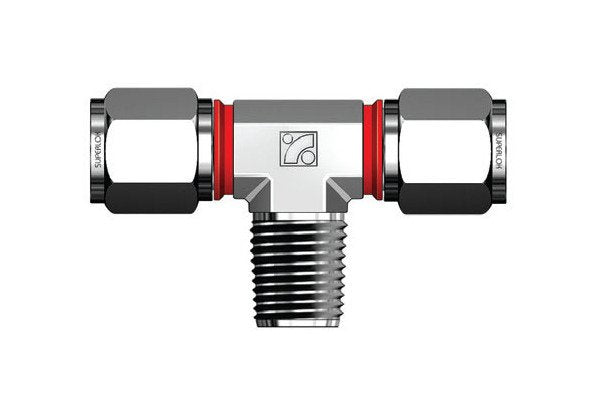

The SMBTI Series 3/8 in Tube Male Branch Tee Fitting is designed to connect fractional tubes with precision. Made from high-quality materials such as Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability. Its innovative i-Fitting® components, including a built-in gap gauge for perfect compression, improve safety and productivity in high-pressure environments. Ideal for valve connections, this fitting meets industry standards for quality and performance.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

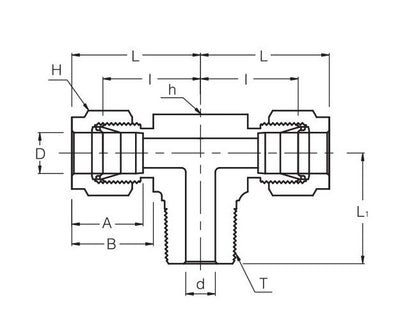

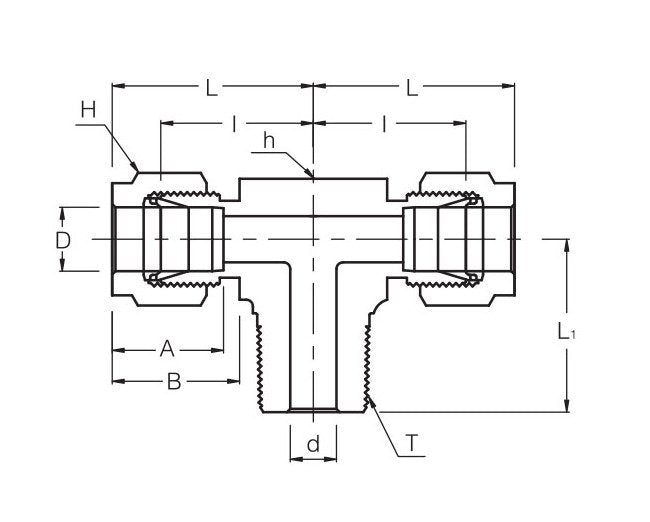

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
23.1 mm
Technical Specs Dimension L
30.48 mm
Technical Specs Dimension L1
28.19 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
