3/8 in Tube OD Male Pipe Weld Elbow | SMPWEI Series
3/8 in Tube OD Male Pipe Weld Elbow | SMPWEI Series
SKU:SMP-b4885a
Seamlessly connect 3/8 in tubes to pipes with SMPWEI Series Male Pipe Weld Elbow. Industry-changing i-Fitting® design for safety & productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
3/8 in Tube OD Male Pipe Weld Elbow | SMPWEI Series
$29.99
Quantity: 1
Claim Your Seller Account
3/8 in Tube OD Male Pipe Weld Elbow | SMPWEI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

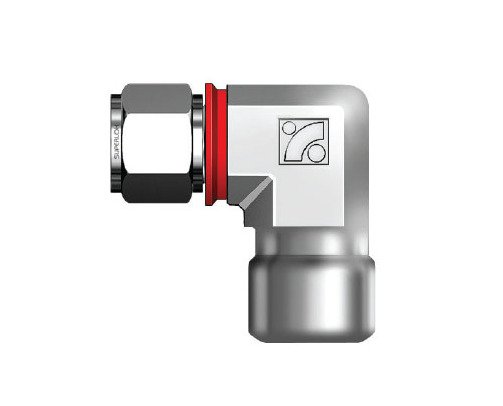

The SMPWEI Series 3/8 inch Tube OD Male Pipe Weld Elbow is a precision-engineered fitting designed to seamlessly connect fractional tubes to pipes. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this male pipe weld elbow features an industry-changing i-Fitting® design. With built-in safety features such as the check ring for perfect compression, this fitting ensures installer safety in high-pressure and chemical environments while enhancing productivity and reducing costs.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

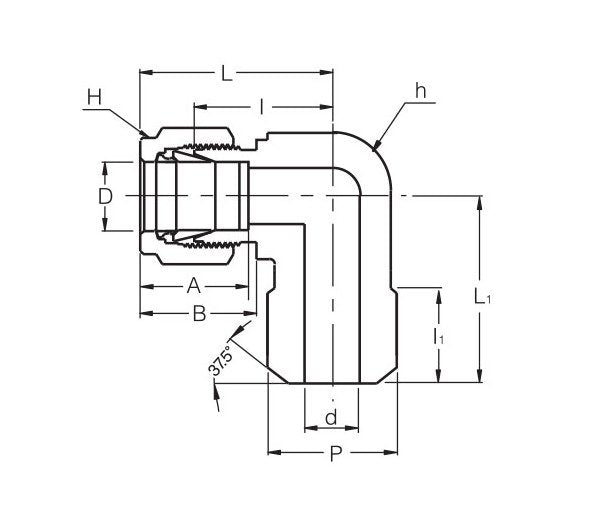

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
23.11 mm
Technical Specs Dimension I1
14.22 mm
Technical Specs Dimension L
30.48 mm
Technical Specs Dimension L2
25.4 mm
Technical Specs Male Pipe Outside Diameter
13.70 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Nominal Male Pipe Size P
1/4 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
