3/8 Inch 316 Stainless Steel D Shackle with Captive Pin

Name: 3/8 Inch 316 Stainless Steel D Shackle with Captive Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-1ad3a0
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-1ad3a0

Premium 3/8" 316 Stainless Steel D Shackle for secure lifting/towing. Captive pin for safety & ease of use. Ideal for various applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

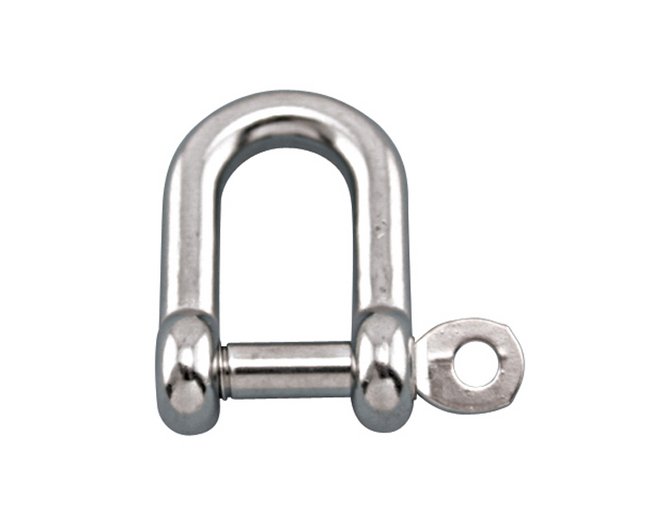

The 3/8 Inch Size A 316 Stainless Steel Straight D Shackle with Captive Pin is a premium wire rope hardware essential. Crafted from durable 316 stainless steel, it offers a Working Load Limit of 1200 lb, ensuring secure lifting and towing operations. The captive pin of this precision cast D shackle enhances safety and convenience, maintaining a flush fit when opened. Ideal for industrial, marine, and rigging applications, this shackle combines top-notch quality with reliable performance.

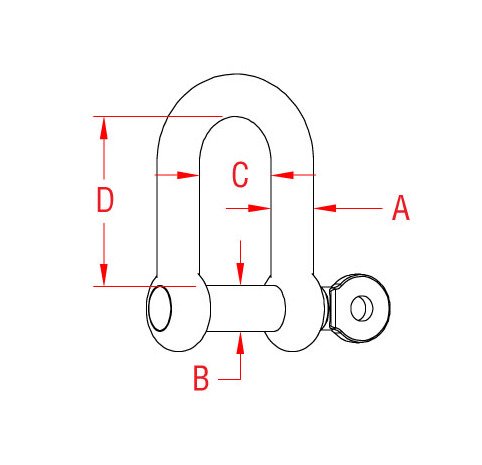

Product Specifications

Note 0

Screw pin is captive and not removable. When it's fully opened, the end of the pin will sit flush with the inside of the shackle.

Specifications C

0.79 "

Specifications D

1.34 "

Specifications Dimension B

0.39 "

Specifications Key Features

Import | Precision Cast

Specifications Material

316 Stainless Steel

Specifications Shackle Type

D Shackle

Specifications Size A

3/8 "

Specifications Weight

0.23 lb

Specifications Wll

1200 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

3/8 Inch 316 Stainless Steel D Shackle with Captive Pin
