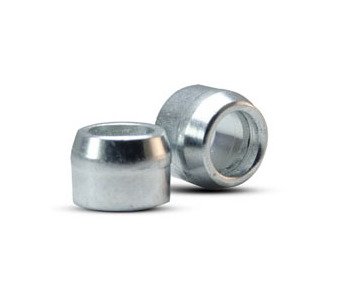

3/8 Inch Low Profile Aluminum Collar

Name: 3/8 Inch Low Profile Aluminum Collar
Brand: Ornit USA
SKU: LOW-ec0dda
Price: 24.99 USD
Availability: OutOfStock

SKU:LOW-ec0dda

Ornit's 3/8 inch Low Profile Aluminum Collar: precise fit, durable finish, compliant with procurement standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3/8 inch Low Profile Aluminum Collar from Ornit is precision-engineered using AL-6061 Aluminum, meeting stringent institutional procurement standards. With a diameter range of 0.375 to 0.385 inches and a low-profile head shape, this collar guarantees a secure fit with a minimum hole diameter of 0.590 inches. The natural finish, zinc coating, and durability make it ideal for a wide range of applications in government projects and institutional settings. Compliant with FAR regulations and industry-specific certifications, this collar ensures reliable performance and longevity.

Product Specifications

Note Note

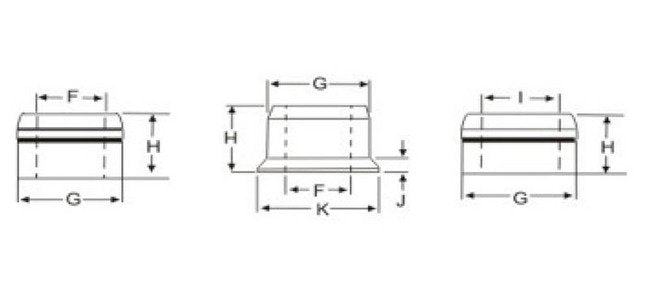

When using Low Profile collars, subtract "J" dimension from thickness of material being fastened to determine grip number.

Technical Specs Brands

Ornit

Technical Specs Coating

Zinc

Technical Specs Diameter

3/8 in

Technical Specs Diameter F

0.375 to 0.385 in

Technical Specs Finish

Natural

Technical Specs Head Shape

Low Profile

Technical Specs Length H

0.295 - 0.310 in

Technical Specs Material

AL-6061 Aluminum (Annealing)

Technical Specs Maximum Dimension J

0.125 in

Technical Specs Maximum Hole Diameter

0.600 in

Technical Specs Minimum Hole Diameter

0.590 in

Technical Specs Weight Per 1000 Pieces

2.08 kg

3/8 Inch Low Profile Aluminum Collar
