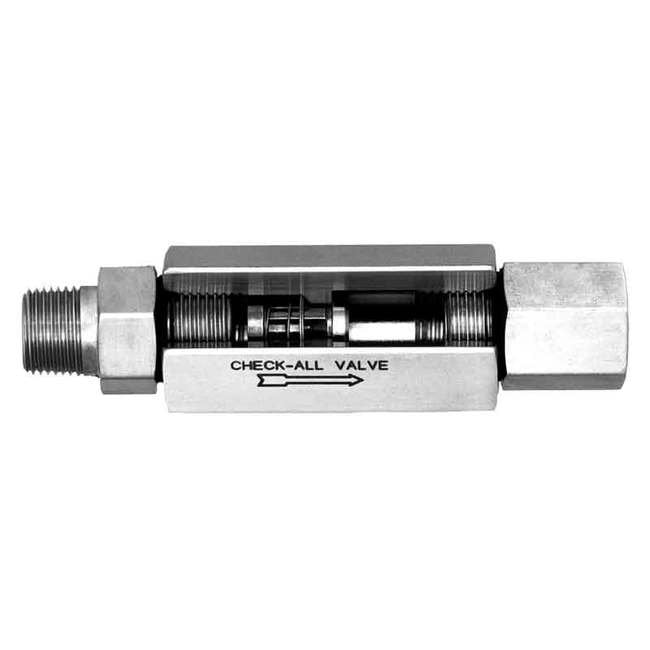

3/8 Inch M1 Style Mini-Check Valve, 3.50 psi Cracking Pressure
3/8 Inch M1 Style Mini-Check Valve, 3.50 psi Cracking Pressure
SKU:M1T-ee8374
High-quality 3/8 Inch M1 Style Mini-Check Valve with 3.50 psi cracking pressure, ideal for various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3/8 Inch M1 Style Mini-Check Valve, 3.50 psi Cracking Pressure
$49.99
Quantity: 1
Claim Your Seller Account
3/8 Inch M1 Style Mini-Check Valve, 3.50 psi Cracking Pressure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3/8 Inch M1 Style Mini-Check Valve with a standard cracking pressure of 3.50 psi is a high-quality, versatile valve suitable for various applications. Constructed with durable 316 Stainless Steel, this valve offers excellent performance and can be tailored to specific requirements with different end fittings. Its ability to function as a low pressure relief valve or vacuum breaker adds to its flexibility. With a non-shock pressure rating of 5000 psig for Stainless Steel valves, this valve meets stringent industry standards for reliability and performance.
Product Specifications
Note
When ordering styles M5 through M8 be sure to specify whether compression (-C) or 37º flare (-F).Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material
316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe And Tube Size
3/8 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
5000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Non Shock Pressure Rating At 100 Degree
Consult factory for P-T rating above 100 ºF.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
C
Specifications Special Options
C = Compression Tube (M5 - M8 only) | F = Flared Tube (M5 - M8 only) | O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
3.50 psi
Specifications Standard End Fitting O Ring Material
Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF
Specifications Valve Style
M1 - Male Pipe Threads Both Ends
