3/8 Inch SAF Series AN Flare Tube Fitting
3/8 Inch SAF Series AN Flare Tube Fitting
SKU:SAF-2c7788
Reliable 3/8 Inch SAF Series AN Flare Tube Fitting for precise connections in Gas Systems & extreme conditions. Tested for reliability & ease of maintenance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
3/8 Inch SAF Series AN Flare Tube Fitting
$39.99
Quantity: 1
Claim Your Seller Account
3/8 Inch SAF Series AN Flare Tube Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

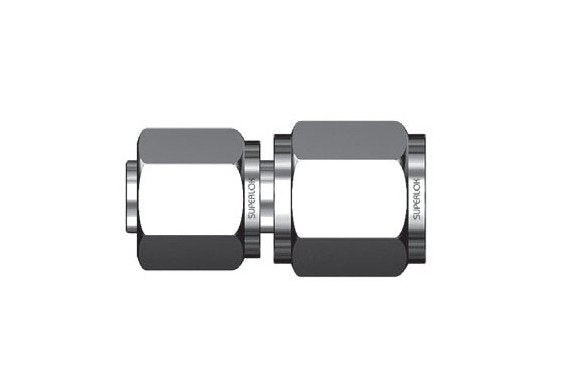

The 3/8 Inch SAF Series AN Flare Tube Fitting is designed to connect Fractional SUPERLOK® Ports to Male AN with precision and reliability. This high-quality stainless steel fitting, fully annealed and compliant with ASTM A269, ensures seamless performance. Suitable for Gas Systems and tested under extreme conditions, this fitting guarantees repeatable and reliable operations. With adherence to rigorous standards, including compatibility with leading manufacturers' fittings, this tube fitting offers ease of assembly and maintenance for a wide range of applications.
Product Specifications
Compatibility Compatibility
SUPERLOK® Tube fittings are designed and manufactured to be interchangeable with other Tube Fittings manufactured by other industry leading manufacturers. When required compatibility testing can be performed by an independent third party and the reports can be provided. Please consult BMT(SUPERLOK®) sales representative for compatibility.
Gas System Application Gas System Application
SUPERLOK® Tube Fittings are appropriate for Gas Systems, but the implementation of certain standards mentioned below should be adhered to just as in other systems.Tubing hardness must be less than that of the ferrules.Tubing should be free of surface imperfections, defects and round in shape.Refer to Table 2 on page 14 for selection of the appropriate wall thickness. (Only shaded areas should be selected for Gas Systems)Tubing ends must be cut squarely and perpendicular to the center-line of the tubing. After the tubing is cut it must be deburred on both the inside and outside with a High quality fully sharpened deburring tool.Follow the SUPERLOK® Installation Instructions from pages 10 to 11 in the catalog.Do not attempt to bend the tubing after a fitting has been Installed in a fixed position.Tubing Systems should be installed to allow for adequate expansion and contraction as well as ease of maintenance.
Hardness Limitation Hardness Limitation
High quality stainless steel tubing that is fully annealed; Seamless or Welded per ASTM A269, A213 or equivalent should be used with SUPERLOK® Tube fittings. The tubing must be a maximum hardness of HRB 90 or less on the Rockwell Scale, however HRB 80 is more suitable for bending and offers a greater difference in hardness to the ferrules. This difference in hardness offers more ease in assembly and better interaction between the ferrules and the tubing.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

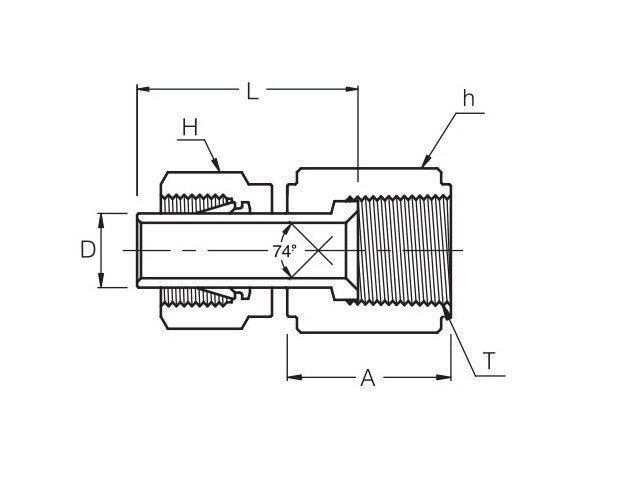

Technical Specs An Tube Flare Size
3/8 in
Technical Specs Dimension A
18.28 mm
Technical Specs Dimension L
27.30 mm
Technical Specs Straight Thread T U
9/16-18 mm
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
Vacuum Cryogenic And High Temperature Applications Vacuum Cryoge
SUPERLOK® Tube Fittings have been tested in vacuum, Cryogenic and High Temperatures insuring repeatable and reliable performance in the severest of applications.
