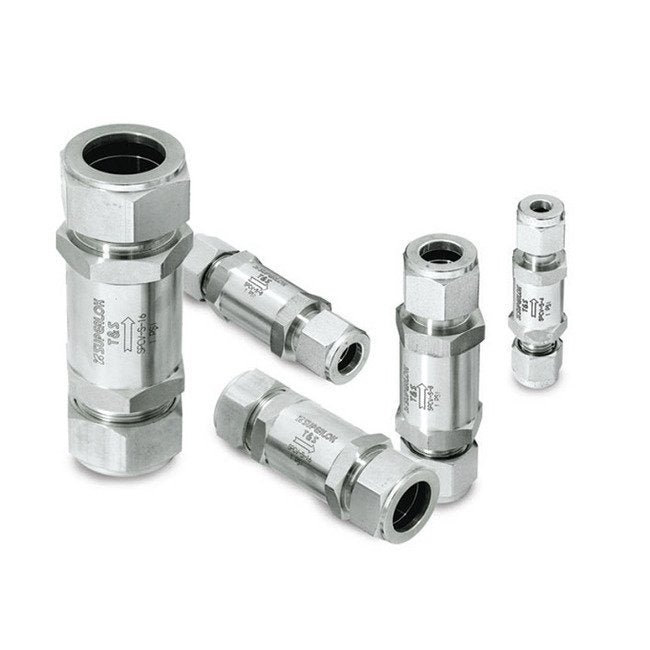

• 3/8 Inch SPCV Series SUPERLOK Check Valve - Image 1
  • 3/8 Inch SPCV Series SUPERLOK Check Valve - Image 2
1 2
Superlok-Mako Products LLC →

3/8 Inch SPCV Series SUPERLOK Check Valve

3/8 Inch SPCV Series SUPERLOK Check Valve

SPC-96205c

High-quality 3/8 Inch SUPERLOK Check Valve for precise flow control in demanding applications. Pressure rating up to 3000 psig. Temperature rating up to 375°F.

$59.99
$59.99
Sale

Initiate Order

3/8 Inch SPCV Series SUPERLOK Check Valve

3/8 Inch SPCV Series SUPERLOK Check Valve

$59.99

Quantity: 1

Claim Your Seller Account

3/8 Inch SPCV Series SUPERLOK Check Valve

3/8 Inch SPCV Series SUPERLOK Check Valve

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SPCV Series 3/8 Inch SUPERLOK Check Valve is a high-quality valve designed for precise flow control in institutional and industrial applications. With a pressure rating of 0 to 3000 psig and a temperature rating of up to 375°F, this valve ensures reliable performance under demanding conditions. Featuring a variety of end connections, including 316 stainless steel and brass, and seals made from EPDM, FKM, NBR, and FFKM, this valve guarantees excellent durability and compatibility with a range of fluids. Each valve undergoes rigorous testing for cracking pressure and reseal performance, providing optimal reliability for critical systems.

Product Specifications

Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

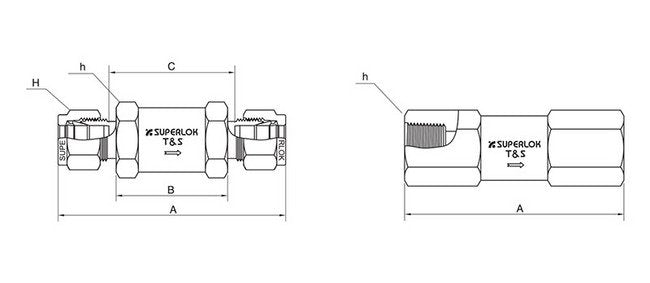

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
76.20 mm
Technical Specs Dimension B
37.6 mm
Technical Specs Dimension C
42.4 mm
Technical Specs Dimension H
17.46 mm
Technical Specs End Connections
3/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
1.5
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
