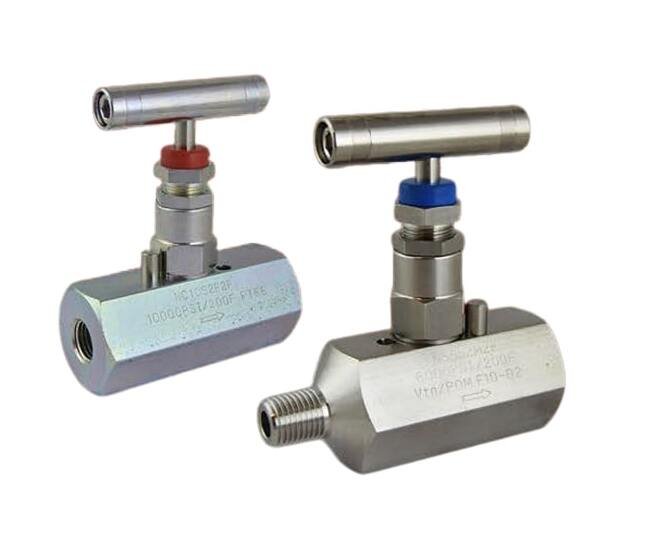

3/8 Inch Standard Pattern Needle Valve, Stainless Steel

Name: 3/8 Inch Standard Pattern Needle Valve, Stainless Steel
Brand: Superlok-Mako Products LLC
SKU: STA-99b6e6
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-99b6e6

Enhance fluid control with precision using our durable Stainless Steel Needle Valve. Ideal for industrial applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance fluid control with precision using our 3/8 Inch Standard Pattern Needle Valve. Built with Stainless Steel, this valve ensures durability and corrosion resistance. The Male x Female NPT thread type, along with a working pressure of 6000 psi, makes it ideal for industrial applications. The PolyOxyMethylene Soft Seat offers reliable sealing, meeting ASME and NACE standards for quality assurance.

Product Specifications

Features Features

Threads Conform to ASME B1.20.1

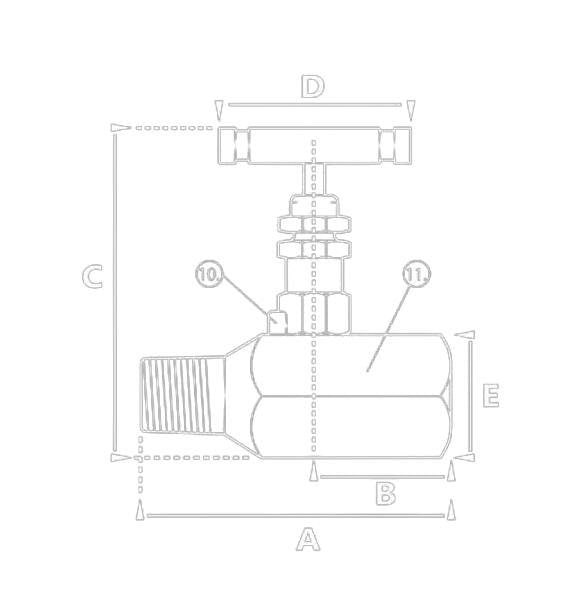

Technical Specs Dimension A

3.23 in

Technical Specs Dimension B

1.62 in

Technical Specs Dimension C

3.54 in

Technical Specs Dimension D

2.24 in

Technical Specs Dimension E

1.26 in

Technical Specs Industry Standards

American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant

Technical Specs Material

Stainless

Technical Specs Seat Material

PolyOxyMethylene (POM) Soft Seat

Technical Specs Thread Size

3/8 in

Technical Specs Thread Type

Male x Female National Pipe Thread (NPT)

Technical Specs Working Pressure

6000 psi

3/8 Inch Standard Pattern Needle Valve, Stainless Steel
