3/8 Inch SUPERLOK Inlet Purge Valve - Union Type
3/8 Inch SUPERLOK Inlet Purge Valve - Union Type
SKU:SPU-8a47a7
Durable 3/8 Inch SUPERLOK Union Purge Valve for reliable pressure control.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3/8 Inch SUPERLOK Inlet Purge Valve - Union Type
$49.99
Quantity: 1
Claim Your Seller Account
3/8 Inch SUPERLOK Inlet Purge Valve - Union Type
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPUV Series 3/8 Inch SUPERLOK Inlet Purge Valve features a durable 316 Stainless Steel | Brass body with a temperature rating of 65 to 600°F. Designed for manual bleed, vent, or drain applications, this valve ensures leaktight closure and pressure control. Its compact design allows for easy installation while the crimped cap prevents accidental disassembly. With a variety of end connections and a vent hole for excess liquid or gas, this valve offers reliability and performance for industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Application
SUPERLOK purge valves are manual bleed, vent, or drain valves. One-quarter turn with a wrench from finger-tight obtains leaktight closure on first makeup. Snugging with a wrench ensures closure to the rated pressure with subsequent makeups.
Caution Caution
When installing a SUPERLOK purge valve, position the vent hole to direct system fluid away from operating personnel. The vent hole rotates with the cap. changing the direction of discharge as the cap is turned. Always open purge valves slowly. These valves contain no packing, so some fluid seepage will occur when the valves are opened. operating personnel must protect themselves from exposure to system fluids.
Features Features
Compact for convenient installation.Vent hole is bled excessive liquid or gas from system lines.Cap is crimped to valve body to prevent accidental disassembly.Variety of end connections : SUPERLOK® tube fittings, NPT and ISO threads.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Pressure Rating At 100 Degree Fahrenheit F 38 Deg
4000 psig | 275 bar
Technical Data Temperature Rating
65 to 600 ºF | -54 to 315 ºC
Technical Specs Body Material
316 Stainless Steel | Brass

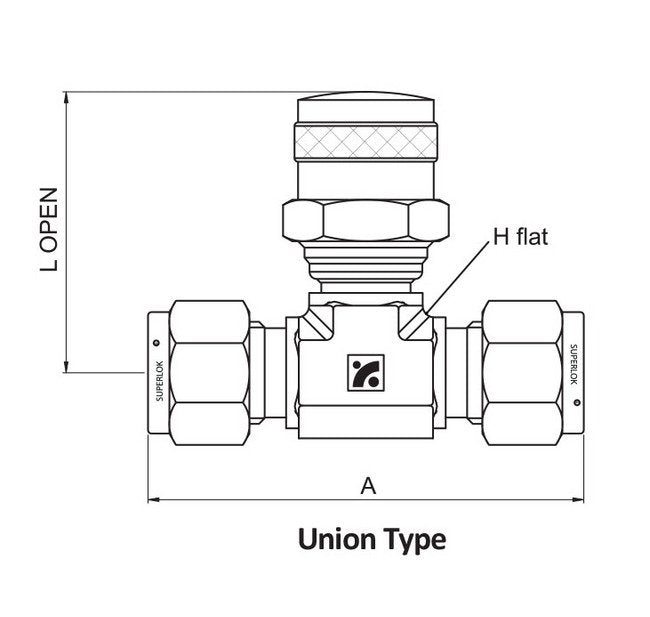

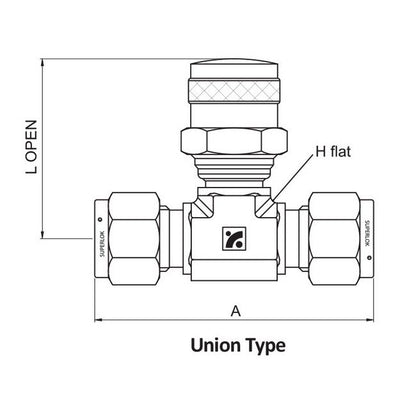

Technical Specs Dimension A
2.40 in | 61.0 mm
Technical Specs Dimension H
0.63 in | 15.9 mm
Technical Specs Dimension L
1.49 in | 38.0 mm
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Pattern Designator
Union Type
Technical Specs Tube Outside Diameter
3/8 in | 10 mm
