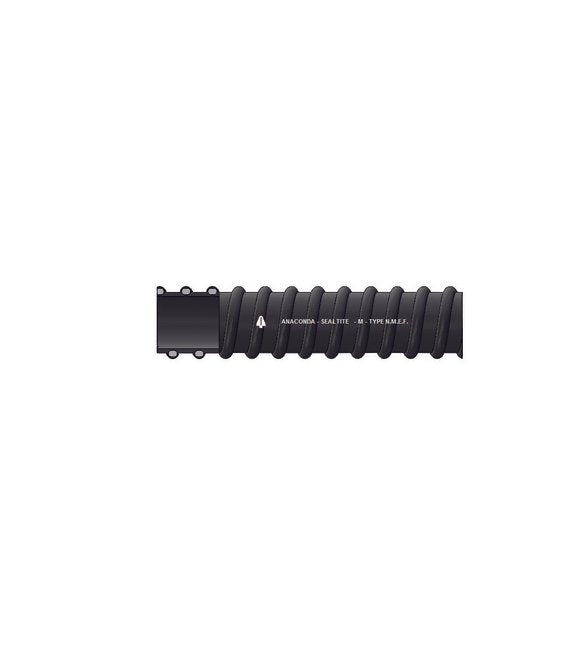

3/8" NMEF Non-Metallic Mechanical Protection Tubing
3/8" NMEF Non-Metallic Mechanical Protection Tubing
SKU:LIQ-2ae3ff
Durable 3/8" NMEF tubing for crush and corrosion resistance in industrial applications. CSA certified and RoHS compliant.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
3/8" NMEF Non-Metallic Mechanical Protection Tubing
$99.99
Quantity: 1
Claim Your Seller Account
3/8" NMEF Non-Metallic Mechanical Protection Tubing
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3/8" NMEF Non-Metallic Mechanical Protection Tubing is designed for industrial applications requiring exceptional crush and corrosion resistance. It features a one-piece construction with rigid non-metallic reinforcement embedded in a flexible PVC wall, providing durability, sunlight resistance, and flame retardant properties. This tubing is CSA certified, RoHS and WEEE compliant, making it suitable for OEM machine building and other industrial applications. With an IP 66/67 Ingress Protection rating and a temperature range of -0ºF to +176ºF, this tubing is versatile and reliable in various settings.
Product Specifications
Application
OEM machine buildingIndustrial applications where tight bend radii are required.
Installation
Tubing used with fittings for non-metallic tubing Type B that comply with the requirements of C22.21 No. 227.3-05. IP 66/67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -0ºF to +176ºF (-18ºC to +80ºC) Wet: +60°C; Oil 70°C. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 1/4" through 2".
Specifications Color
BLACK
Specifications Connector Type
Type B
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Electrical Trade Size
3/8 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Bend Radius
2.0 in
Specifications Inside Diameter
.484-.504 in
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft
Specifications Naed Pin
3620120
Specifications Outside Diameter
.690-.710 in
Specifications Standard Length Coil
100 ft
