3/8" RWS Fixture Whip - 18/3 Stranded Galvanized Steel with Snap-Tite Connectors

Name: 3/8" RWS Fixture Whip - 18/3 Stranded Galvanized Steel with Snap-Tite Connectors
Brand: Anamet Electrical, Inc.
SKU: FIX-2239ab
Price: 24.99 USD
Availability: OutOfStock

SKU:FIX-2239ab

Durable 3/8" RWS Fixture Whip with snap-tite connectors. Meets FMC NEC 348 requirements. Ideal for LED connections.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

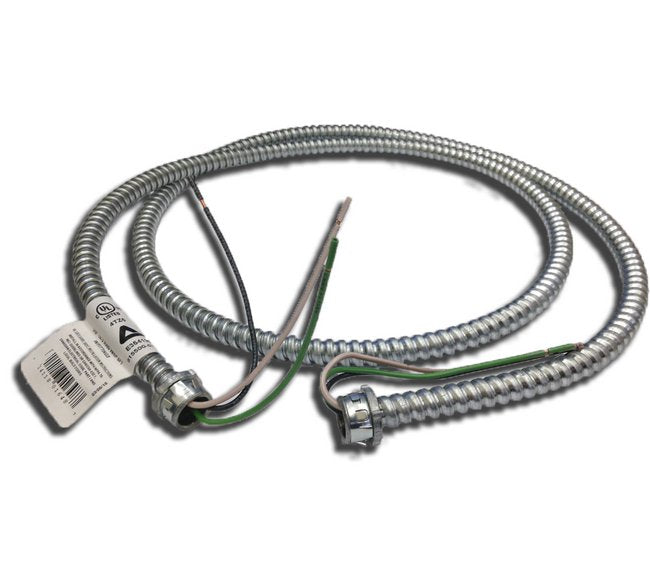

The 3/8" RWS Fixture Whip features a durable construction of continuously interlocked, galvanized steel strip for high crush resistance. It includes 18/3 gauge solid or stranded copper wires in white, black, green, and red colors. This six-foot whip is flexible, with 3/8 inch screw-in, snap-tite connectors on each end for easy installation. Designed to meet FMC NEC 348 requirements, it offers a smooth exterior and interior for convenient wire pulling and fishing. UL Listed and RoHS WEEE Compliant, this whip is ideal for LED light or luminaire connections.

Product Specifications

Specifications Cross Reference

SW10183

Specifications Electrical Trade Size

3/8 18/3 in | 12 mm

Specifications Inside Bend Radius

2.0 in

Specifications Inside Diameter

.375-.393 in

Specifications Length

6 ft | 1.83 m

Specifications Naed Pin

915508-0720

Specifications Outside Diameter

.560-.610 in

3/8" RWS Fixture Whip - 18/3 Stranded Galvanized Steel with Snap-Tite Connectors
