3/8" RWS Fixture Whip - 18/5 Stranded Galvanized Steel with Snap-Tite Connectors

Name: 3/8" RWS Fixture Whip - 18/5 Stranded Galvanized Steel with Snap-Tite Connectors
Brand: Anamet Electrical, Inc.
SKU: FIX-0cadbf
Price: 24.99 USD
Availability: OutOfStock

SKU:FIX-0cadbf

Durable 6ft 3/8" RWS Fixture Whip with 18/5 Stranded Copper Wires & Snap-Tite Connectors. Meets NEC standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

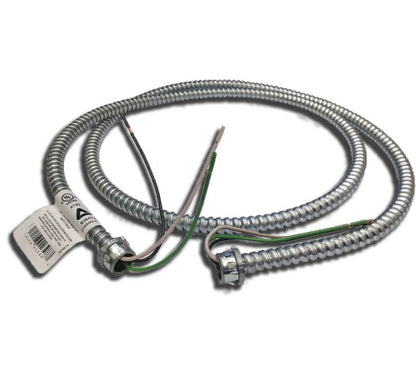

The 3/8" RWS Fixture Whip is meticulously engineered using continuously interlocked, galvanized steel strip for exceptional durability. With 18/5 gauge solid copper wires, this whip offers flexibility and high crush resistance. Featuring 3/8 inch screw-in, snap-tite connectors on each end and fittings for easy installation in standard knockout holes, it ensures effortless setup. Its smooth exterior and interior facilitate seamless wire pulling and fishing. Certified to meet FMC NEC 348 requirements, UL LISTED, and RoHS WEEE COMPLIANT, this six-foot whip is ideal for LED light or luminaire connections.

Product Specifications

Specifications Electrical Trade Size

3/8 18/5 in | 12 mm

Specifications Inside Bend Radius

2.0 in

Specifications Inside Diameter

.375-.393 in

Specifications Length

6 ft | 1.83 m

Specifications Naed Pin

925509-0720

Specifications Outside Diameter

.560-.610 in
