3/8" Tube OD, 1/8" NPT Female Elbow Connector
3/8" Tube OD, 1/8" NPT Female Elbow Connector
SKU:SFE-4e2758
Securely connect fractional tubes to male NPT threads with the SFEI Series Female Elbow Connector for reliable, industry-standard performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
3/8" Tube OD, 1/8" NPT Female Elbow Connector
$24.99
Quantity: 1
Claim Your Seller Account
3/8" Tube OD, 1/8" NPT Female Elbow Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

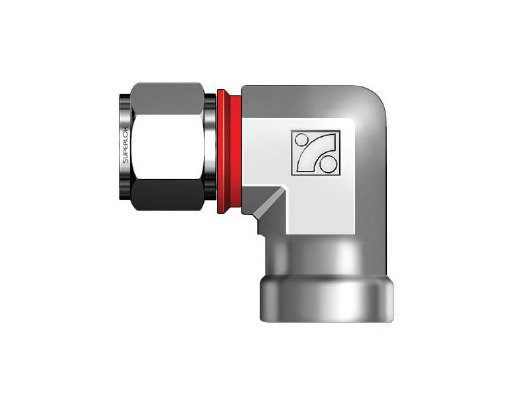

The SFEI Series 3/8" Tube OD, 1/8" NPT Female Elbow Connector is designed to seamlessly connect fractional tubes to male NPT threads. Constructed from Alloy 625, Alloy 825, Alloy C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, or Stainless Steel, this female elbow ensures robust and secure connections. The patented i-Fitting® design includes a built-in gap gauge for precise tightening, enhancing safety and productivity in high-pressure environments. Ideal for valve connections, this product offers reliability and performance, meeting industry standards for quality and durability.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

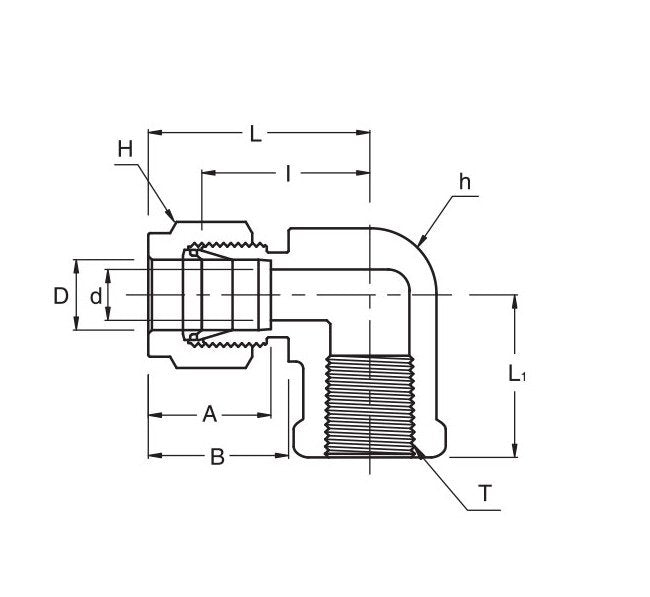

Technical Specs Connection Type
Female
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
23.11 mm
Technical Specs Dimension L
30.48 mm
Technical Specs Dimension L1
19.05 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
