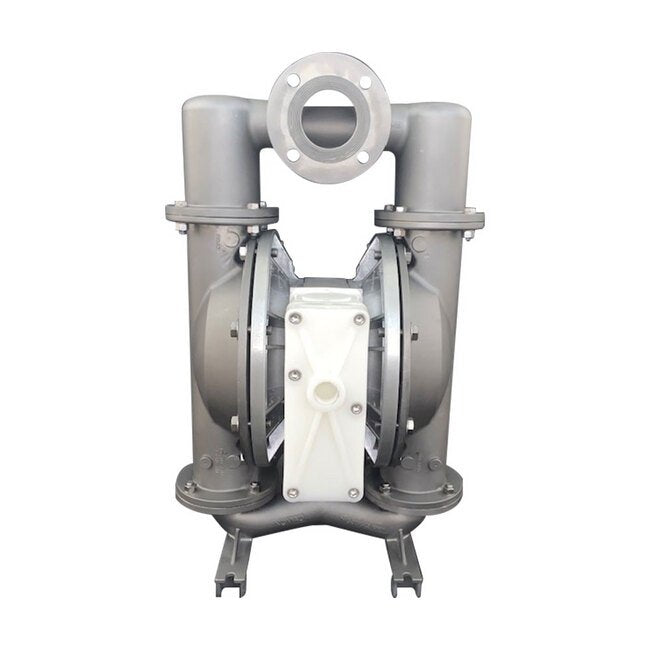

3" Aluminum Pwr-Flo™ AODD Pump with PTFE-UFI Santoprene® Diaphragm
3" Aluminum Pwr-Flo™ AODD Pump with PTFE-UFI Santoprene® Diaphragm
SKU:MAN-668358
Efficient 3" Aluminum AODD Pump for reliable liquid transfer & batching applications.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
3" Aluminum Pwr-Flo™ AODD Pump with PTFE-UFI Santoprene® Diaphragm
$1,799.99
Quantity: 1
Claim Your Seller Account
3" Aluminum Pwr-Flo™ AODD Pump with PTFE-UFI Santoprene® Diaphragm
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3" Aluminum Pwr-Flo™ AODD Pump with PTFE-UFI Santoprene® Diaphragm from the NOMAD® PWR-FLO™ series is designed as a drop-in replacement for Wilden® AODD pumps, offering efficient air-driven double diaphragm performance. Its PWR-FLO™ asymmetrical spool design ensures reliable on/off liquid transfer for filling and batching applications. With a chemically resistant polypropylene air valve and center section, this pump provides excellent durability and versatility. It boasts a max flow rate of 246 gpm, handling solids up to 0.375 inches, making it ideal for various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

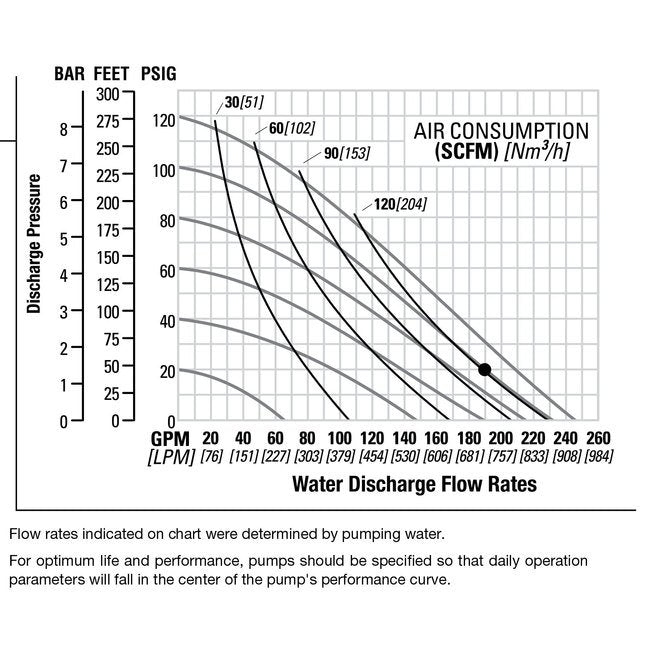

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE - UFI Santoprene® back up
Specifications Displacement Per Cycle
1.29 gal | 4.88 lit
Specifications Elastomers
PTFE, PTFE
Specifications Fluid Inlet Size
3 in | 76 mm
Specifications Fluid Outlet Size
3 Flanged ANSI in | 76 Flanged ANSI mm
Specifications Height
35 Inch | 35 in | 894.08 mm
Specifications Length
21 Inch | 21 in | 0.5410 m | 541.02 mm
Specifications Max Flow Rate
246 gpm | 931.21 lpm
Specifications Model
NPF80/AAAA/TFF/TF/STF/FLA/B/X
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-16562
Specifications Solids Handling
0.375 in | 10 mm
Specifications Wetted Moc
Aluminum
Specifications Width
21 Inch | 21 in | 0.5359 m | 535.94 mm
