3" and 4" Self-Priming Solids Handling Pedestal Pump
3" and 4" Self-Priming Solids Handling Pedestal Pump
SKU:PRO-17e0fb
Heavy-duty Self-Priming Pedestal Pump for water, wastewater, and utility applications. Durable construction, high efficiency, and solids handling capability up to 2".
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
3" and 4" Self-Priming Solids Handling Pedestal Pump
$1,499.99
Quantity: 1
Claim Your Seller Account
3" and 4" Self-Priming Solids Handling Pedestal Pump
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

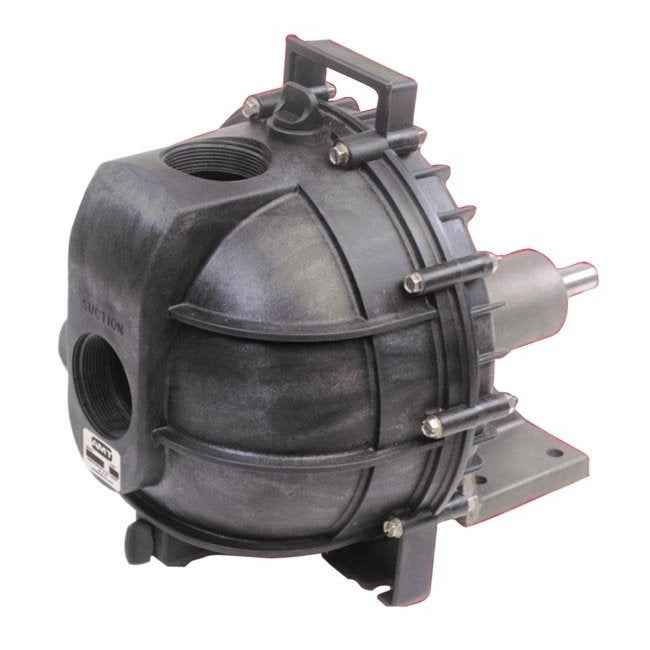

The 3" and 4" Self-Priming Solids Handling Pedestal Pump by American Machine and Tool Company is a heavy-duty solution for water, wastewater, sump, and utility applications. With a cast aluminum construction, cast iron wear parts, and Buna-N flapper valve, this pump is designed for durability. It self-primes to 20 ft and can handle solids up to 2". The pump also features a heavy-duty cast iron bearing housing with precision sealed ball bearings for reliable operation. Suitable for various industries, this pump meets the highest standards of efficiency and performance.
Product Specifications
Specifications 0
Cast aluminum construction with cast iron wear partsBuna-N flapper valve and O-ringsMaximum Working Pressure 75 PSIMaximum Temperature 180° FSelf-priming to 20 ftSolids Handling Capability: 3/4" 3390-99; 1.5" 3100-99; 2" 3993-99Heavy duty cast iron bearing housing containing(3) precision sealed ball bearings2-1/4" x 1/4" x 1/8" keyway

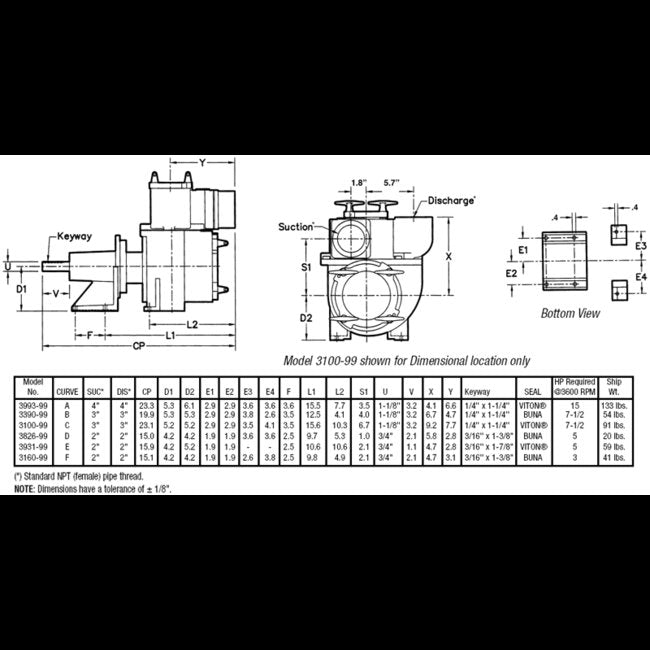

Specifications Curve
A
Specifications Customs Code
HTS Code 8413702025
Specifications Driver
Pedestal
Specifications Height
20 in | 510.54 mm
Specifications Inlet Size
4 in
Specifications Installed Options
Silicon Carbide/Viton Seal, Flapper and Gasket Installed (339X-300-VS) | Silicon Carbide/Viton Seal, O-Ring and Flapper Installed (316X-300-VS)
Specifications Length
23 in | 584.20 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Porting Position
4 in
Specifications Power Required At 3600 Rpm
15 hp
Specifications Pump Type
Trash
Specifications Seal Material
Viton®
Specifications Sku
AT399399SP
Specifications Temperature
180 ºF
Specifications Weight
133 | 60.33 | 133 lbs
Specifications Width
9 in | 236.22 mm
