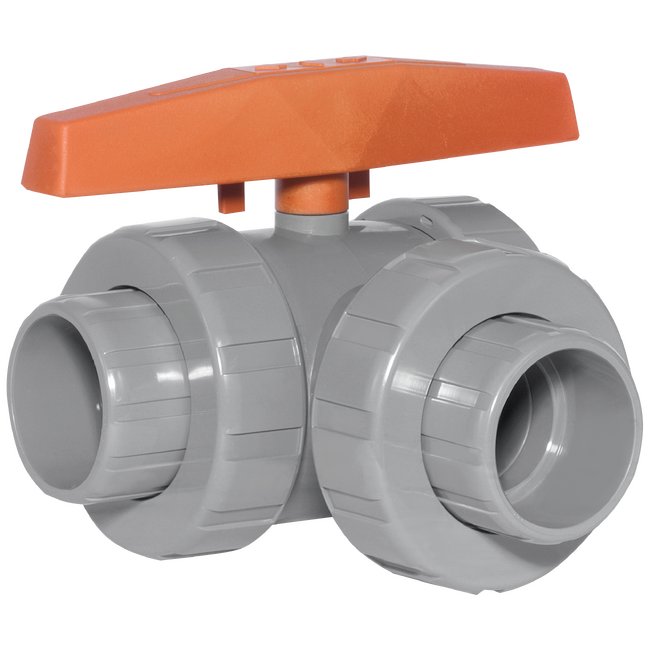

3" CPVC 3-Way Lateral True Union Ball Valve with FPM O-Rings
3" CPVC 3-Way Lateral True Union Ball Valve with FPM O-Rings
SKU:TRU-49eedc
Versatile 3" CPVC 3-Way Lateral True Union Ball Valve with FPM O-Rings, perfect for precise flow control.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
3" CPVC 3-Way Lateral True Union Ball Valve with FPM O-Rings
$89.99
Quantity: 1
Claim Your Seller Account
3" CPVC 3-Way Lateral True Union Ball Valve with FPM O-Rings
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3" CPVC 3-Way Lateral True Union Ball Valve from our LA Series offers exceptional versatility in diverting flow efficiently. Designed for seamless operation, this valve allows flow diversion from the center port to either left or right ports, eliminating the need for an OFF position. Crafted from durable CPVC with FPM o-rings, this valve ensures reliable performance even in demanding industrial settings. The socket end connections provide secure fitting, and with a Cv Factor of 190, it guarantees optimal flow control. Sizes ranging from 1/2" to 6" are rated @ 150PSI, catering to a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
6.40 in | 162.56 mm
Specifications B
5.90 in | 149.86 mm
Specifications Body Material
CPVC
Specifications C
7.59 in | 192.79 mm
Specifications Cv Factor
190
Specifications E
10.50 in | 266.70 mm
Specifications End Connection
Socket
Specifications F
8.72 in | 221.49 mm
Specifications G
16.00 in | 406.40 mm
Specifications H
5.35 in | 135.89 mm
Specifications Seals
FPM
Specifications Size
3"
