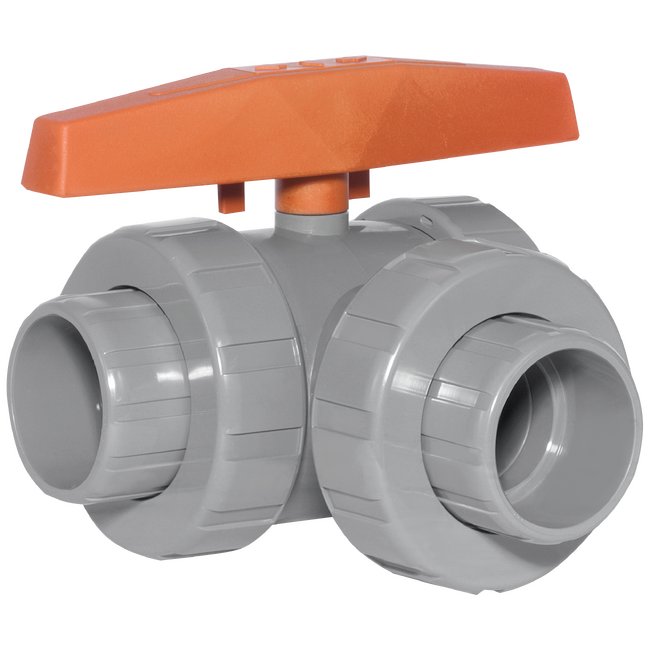

3" CPVC 3-Way Lateral True Union Ball Valves w/EPDM O-Rings, Flanged End

Name: 3" CPVC 3-Way Lateral True Union Ball Valves w/EPDM O-Rings, Flanged End
Brand: Hayward Flow Control
SKU: TRU-31f00a
Price: 89.99 USD
Availability: OutOfStock

SKU:TRU-31f00a

3" CPVC 3-Way Lateral True Union Ball Valves for precise flow control with EPDM o-rings and flanged ends.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3" CPVC 3-Way Lateral True Union Ball Valves from our LA Series are designed for precise flow control in industrial settings. With flanged end connections and high-quality EPDM o-rings, these valves ensure leak-proof operation. The innovative design allows diversion of flow from the center port to either side without an OFF position, providing flexibility in operations. Rated at 150PSI and with a Cv Factor of 190, these valves offer reliable performance in demanding environments. Available in sizes up to 6 inches, these True Union Ball Valves meet stringent industrial standards for durability and efficiency.

Product Specifications

Specifications A

6.40 in | 162.56 mm

Specifications B

5.90 in | 149.86 mm

Specifications Body Material

CPVC

Specifications C

7.59 in | 192.79 mm

Specifications Cv Factor

190

Specifications E

10.50 in | 266.70 mm

Specifications End Connection

Flanged

Specifications F

8.72 in | 221.49 mm

Specifications G

16.00 in | 406.40 mm

Specifications H

5.35 in | 135.89 mm

Specifications Seals

EPDM

Specifications Size

3" CPVC 3-Way Lateral True Union Ball Valves w/EPDM O-Rings, Flanged End
