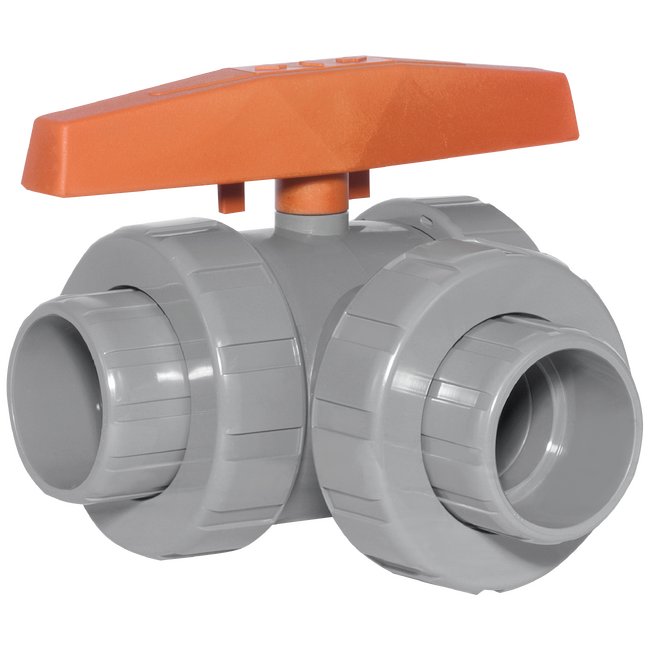

3" CPVC 3-Way Lateral True Union Ball Valves with EPDM Seals

Name: 3" CPVC 3-Way Lateral True Union Ball Valves with EPDM Seals
Brand: Hayward Flow Control
SKU: TRU-094693
Price: 49.99 USD
Availability: OutOfStock

SKU:TRU-094693

3" CPVC 3-Way Lateral Ball Valves with EPDM Seals for reliable flow control

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 3" CPVC 3-Way Lateral True Union Ball Valves from our LA Series are designed for efficient flow diversion, allowing switching between the center, left, or right ports seamlessly. Constructed with durable CPVC body material and EPDM o-rings, these valves ensure optimal performance and leak resistance. With socket end connections, they offer easy installation and maintenance. Sized at 3" with a Cv Factor of 190, these valves are rated @ 150PSI, meeting industry standards for reliability and durability.

Product Specifications

Specifications A

6.40 in | 162.56 mm

Specifications B

5.90 in | 149.86 mm

Specifications Body Material

CPVC

Specifications C

7.59 in | 192.79 mm

Specifications Cv Factor

190

Specifications E

10.50 in | 266.70 mm

Specifications End Connection

Socket

Specifications F

8.72 in | 221.49 mm

Specifications G

16.00 in | 406.40 mm

Specifications H

5.35 in | 135.89 mm

Specifications Seals

EPDM

Specifications Size

3" CPVC 3-Way Lateral True Union Ball Valves with EPDM Seals
