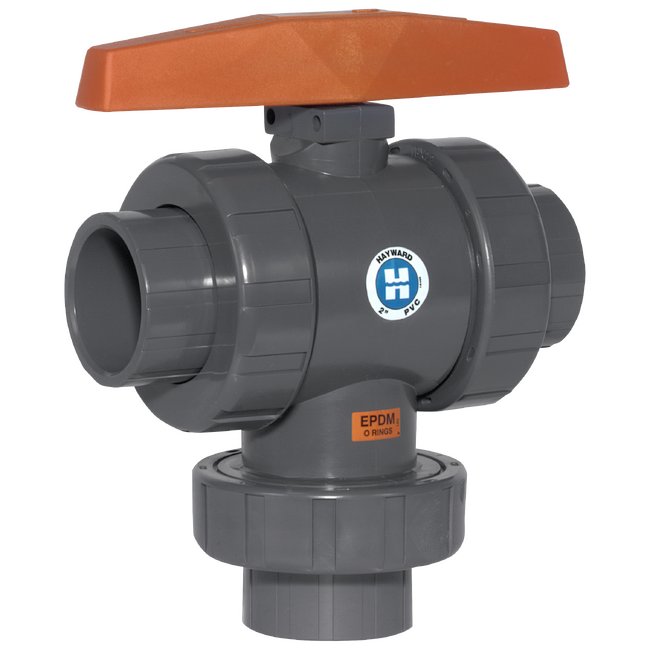

3" CPVC 3-Way True Union Ball Valve with FPM O-Rings, Flanged End Connections
3" CPVC 3-Way True Union Ball Valve with FPM O-Rings, Flanged End Connections
SKU:TRU-c73528
3" CPVC 3-Way True Union Ball Valve for efficient flow control. Durable CPVC construction with FPM o-rings and flanged end connections.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
3" CPVC 3-Way True Union Ball Valve with FPM O-Rings, Flanged End Connections
$65.99
Quantity: 1
Claim Your Seller Account
3" CPVC 3-Way True Union Ball Valve with FPM O-Rings, Flanged End Connections
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

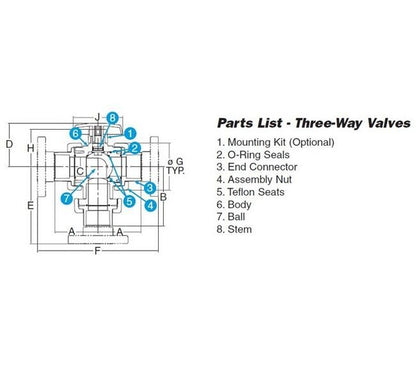

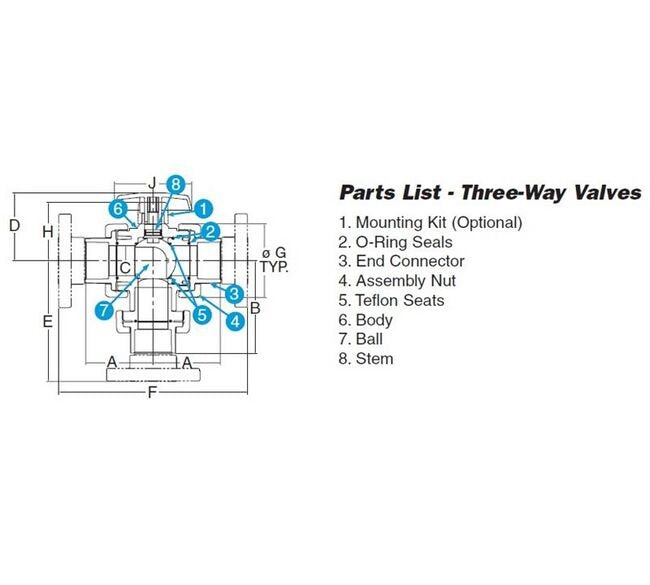

The 3" CPVC 3-Way True Union Ball Valve, part of the TW Series, offers versatile flow configurations with three ports. Crafted from durable CPVC with FPM o-rings, this valve is designed for reliability and longevity. Featuring precise measurements of A: 5.96 in, B: 7.59 in, C: 3.00 in, D: 7.02 in, E: 8.72 in, F: 16.00 in, G: 6.40 in, H: 5.88 in, J: 10.50 in, and a Cv Factor of 190, this valve ensures efficient performance across various applications. With flanged end connections, this valve simplifies installation and maintenance, meeting the stringent standards required by both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
5.96 in | 151.38 mm
Specifications B
7.59 in | 192.79 mm
Specifications Body Material
CPVC
Specifications C
3.00 in | 76.20 mm
Specifications Cv Factor
190
Specifications D
7.02 in | 178.31 mm
Specifications E
8.72 in | 221.49 mm
Specifications End Connection
Flanged
Specifications F
16.00 in | 406.40 mm
Specifications G
6.40 in | 162.56 mm
Specifications H
5.88 in | 149.35 mm
Specifications J
10.50 in | 266.70 mm
Specifications Seals
FPM
Specifications Size
3"
