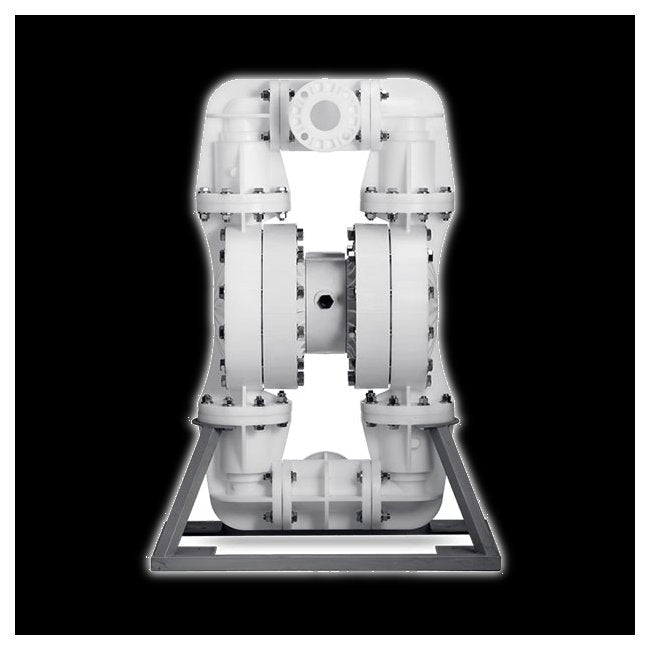

3" Flanged PWR-FLO AODD Pump, Polypropylene with PTFE Diaphragm
3" Flanged PWR-FLO AODD Pump, Polypropylene with PTFE Diaphragm
SKU:MAN-80c1c2
Efficient 3" Flanged AODD Pump for large solids and slurries, featuring Polypropylene construction with PTFE diaphragm. Max flow rate: 207 gpm.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
3" Flanged PWR-FLO AODD Pump, Polypropylene with PTFE Diaphragm
$1,299.99
Quantity: 1
Claim Your Seller Account
3" Flanged PWR-FLO AODD Pump, Polypropylene with PTFE Diaphragm
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3" Flanged PWR-FLO AODD Pump from the NOMAD PWR-FLO Pumps line is a robust solution for both consumer and institutional buyers. Designed as a drop-in replacement for Wilden AODD pumps, this pump is suitable for handling large solids and slurries efficiently. The Polypropylene construction with PTFE diaphragm and Neoprene backup ensures chemical resistance and reliability in liquid transfer applications. With a max flow rate of 207 gpm and a displacement of 0.99 gal per cycle, this pump excels in filling and batching operations. Its compliance with industry standards makes it a premium choice for industrial procurement needs.
Product Specifications
Curves 0

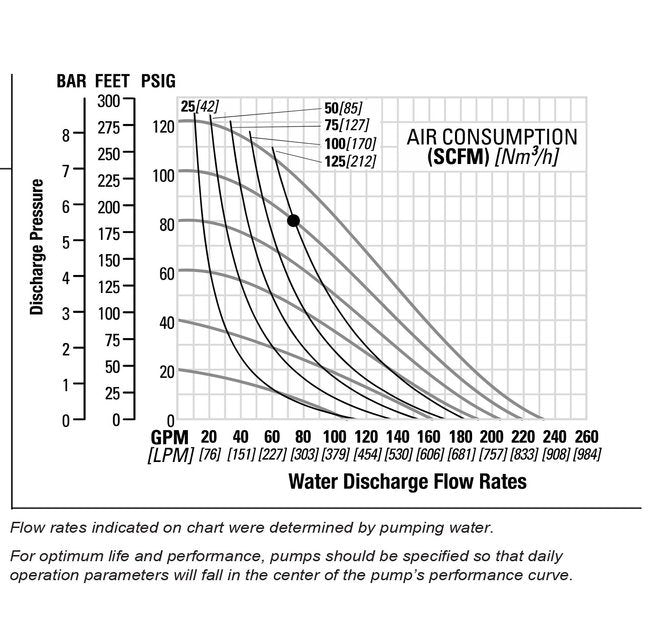

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
PTFE (with Neoprene back-up)
Specifications Displacement Per Cycle
0.99 gal | 3.75 lit
Specifications Elastomers
Viton Encapsulated, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
3 Flanged in | 76 Flanged mm
Specifications Fluid Outlet Size
3 Flanged in | 76 Flanged mm
Specifications Height
50 Inch | 50 in | 1.2776 m | 1277.62 mm
Specifications Length
36 Inch | 36 in | 0.9144 m | 914.40 mm
Specifications Max Flow Rate
207 gpm | 783.58 lpm
Specifications Moc
Polypropylene
Specifications Model
NPF80/PPPP/TF/TF/PTV/FL/B/W
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-120061-1
Specifications Solids Handling
0.5 in | 13 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
23 Inch | 23 in | 0.5842 m | 584.20 mm
