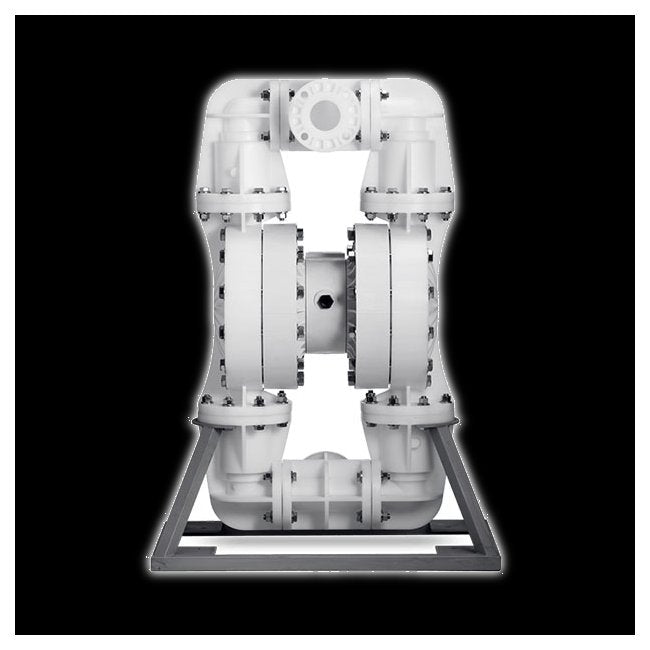

3" Flanged PWR-FLO⢠AODD Pump with Polypropylene & Viton Diaphragm
3" Flanged PWR-FLO⢠AODD Pump with Polypropylene & Viton Diaphragm
SKU:MAN-36fee2
Efficient 3" Flanged AODD Pump, Polypropylene & Viton Diaphragm - Reliable, Chemically Resistant, Max 232 gpm
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
3" Flanged PWR-FLO⢠AODD Pump with Polypropylene & Viton Diaphragm
$2,899.99
Quantity: 1
Claim Your Seller Account
3" Flanged PWR-FLO⢠AODD Pump with Polypropylene & Viton Diaphragm
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3" Flanged PWR-FLO⢠AODD Pump from the NOMAD® PWR-FLO⢠line is engineered as a drop-in replacement for Wilden® AODD pumps, offering exceptional performance in handling large solids and slurries. Featuring a Polypropylene construction with Viton/FKM Diaphragm, this pump showcases an asymmetrical spool design for efficient air system operation. Its anti-stalling design enhances reliability for liquid transfer tasks, making it ideal for filling and batching applications. With chemically resistant components and a max flow rate of 232 gpm, this pump ensures durability, efficiency, and precision in industrial processes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Viton/FKM
Specifications Displacement Per Cycle
1.52 gal | 5.75 lit
Specifications Elastomers
Viton Encapsulated, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
3 Flanged in | 76 Flanged mm
Specifications Fluid Outlet Size
3 Flanged in | 76 Flanged mm
Specifications Height
50 Inch | 50 in | 1.2776 m | 1277.62 mm
Specifications Length
36 Inch | 36 in | 0.9144 m | 914.40 mm
Specifications Max Flow Rate
232 gpm | 878.22 lpm
Specifications Moc
Polypropylene
Specifications Model
NPF80/PPPP/VT/TF/PTV/FL/B/W
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-120068-1
Specifications Solids Handling
0.5 in | 13 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
23 Inch | 23 in | 0.5842 m | 584.20 mm
