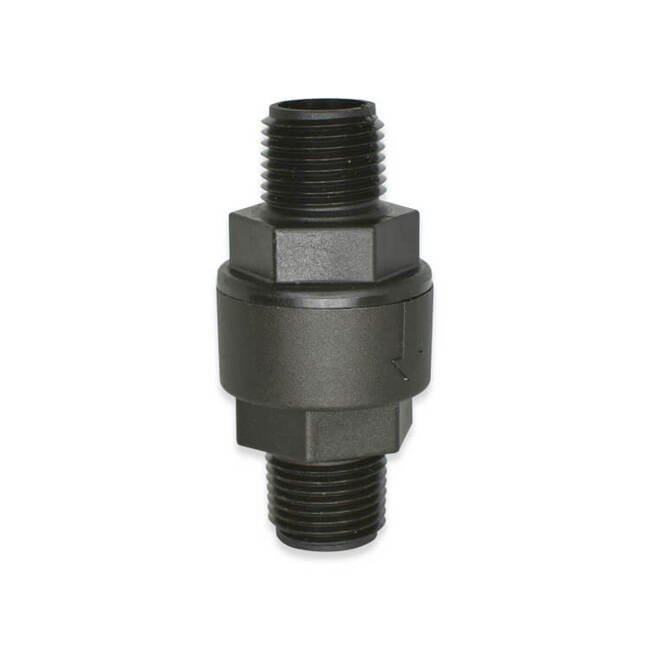

The FSPV series poppet check valves come in black PVDF, back polypropylene, and white polypropylene with a choice of Buna-N, EPDM, Viton®, or Kalrez® seal. The standard spring is 302 stainless steel with a cracking pressure of 1/3 psi. Optional springs of 1 or 7 psi are available. These high-flow valves can be used in pressures up to 125 psi. Hastelloy® spring is optional. The inlet and outlet sizes are female NPT 1/4 inch, 3/8 inch, 1/2 inch, and 3/4 inch, and male NPT size of 1/2 inch.
Product Specifications
Note Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Connection Type
Threaded
Technical Specs Material
Polypropylene
Technical Specs Pressure
1/3 psi
Technical Specs Seal Material
Fluorocarbon (FKM) | Hastelloy®
Technical Specs Series
FSPV
Technical Specs Thread Size
3/4 in
Technical Specs Thread Type
Female National Pipe Thread (FNPT)
Technical Specs Type
Disk
Technical Specs Valve Type
Poppet Check
