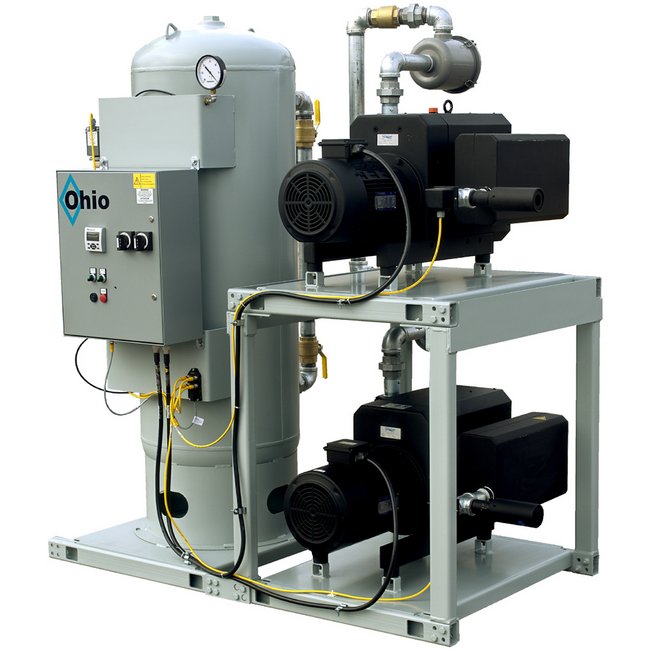

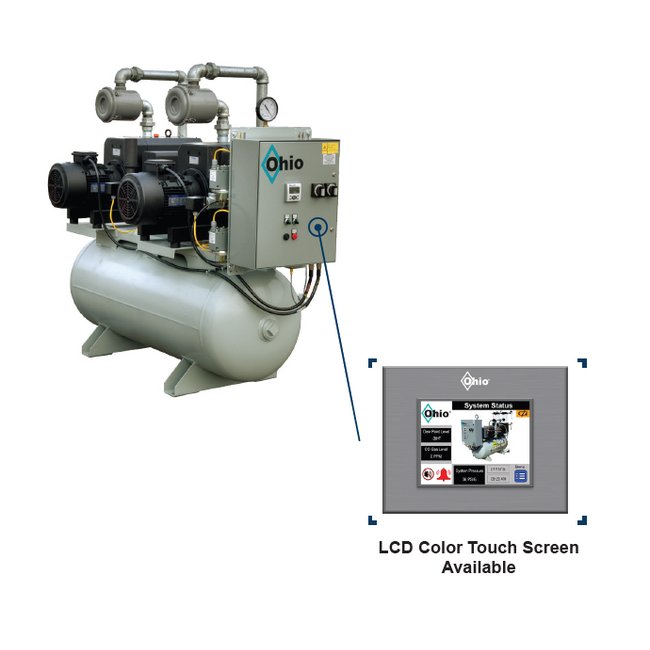

The Ohio® Medical Oil-Less Rotary Claw Medical Vacuum System is fully NFPA® 99 compliant for use in medical vacuum and WAGD applications. The unit consists of electric motor driven pumps, vacuum receiver, electrical control system, and interconnection piping and wiring. The components are modularly assembled to accommodate most existing doorways and designed for serviceability. The packaged unit is factory tested prior to shipment and warranted for a period of 30 months from date of shipment or 24 months from date of start-up.

Product Specifications

Note

Full Load Amperage, Three Phase MotorsAll FLA listed are approximate

Specifications Motor Power

3 hp

Specifications Pump Type

Rotary Claw

Specifications System Full Load Current At 208 Volt V Voltage

22.4 A

Specifications System Full Load Current At 230 Volt V Voltage

20.3 A

Specifications System Full Load Current At 380 Volt V Voltage

12.4 A

Specifications System Full Load Current At 460 Volt V Voltage

10.2 A

Specifications Type

Duplex
