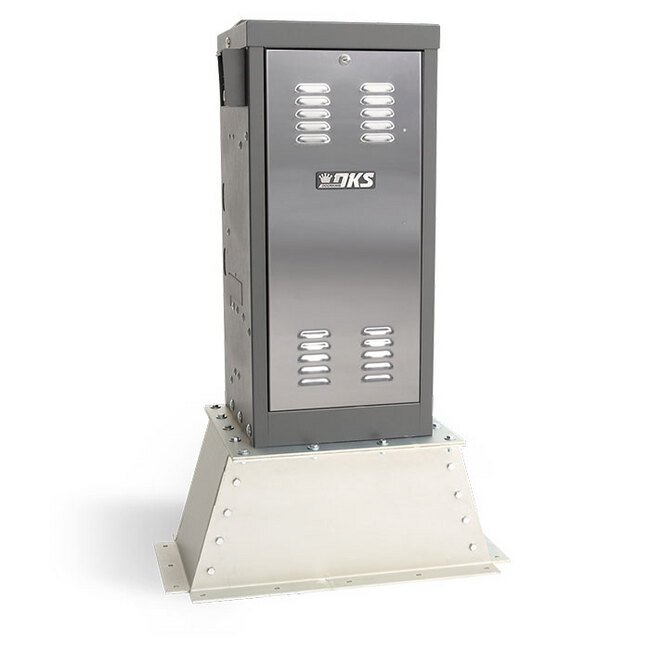

3 HP Maximum Security Slide Gate Operator
3 HP Maximum Security Slide Gate Operator
SKU:MAX-c879ec
Enhance security and control with the 3 HP Maximum Security Slide Gate Operator by DoorKing®. Designed for fail-secure operation with anti-tailgating features and adjustable speed control.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
3 HP Maximum Security Slide Gate Operator
$3,499.99
Quantity: 1
Claim Your Seller Account
3 HP Maximum Security Slide Gate Operator
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3 Horsepower (hp) Motor Maximum Security Vehicular Slide Gate Operator from the DoorKing® 9200 Series is a top choice for industrial and high-security locations like loading docks, factories, and airport security areas. Designed for fail-secure operation, this gate operator includes features like anti-tailgating circuit, adjustable partial open functionality, and speed controller options ranging from 1/2 ft/sec up to 4 ft/sec. With a solid 3 hp continuous-duty motor, adjustable speed controls, and built-in security features, this operator ensures reliable and secure gate access control for gates up to 100 feet in length and weighing up to 5000 lb. Suitable for Class III and IV applications, ETL Listed for safety compliance, and includes various convenience features for enhanced security and functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Our experience in the industry has taught us not to overlook this critical component - especially considering our Operators can move gates up to 160 feet long and 25,000 pounds. Not only can we move massive gates, but we can move them quickly in an emergency at a rate of 4 feet per second.A customer-favorite feature is our Gate Reporting, which delivers the who-where-when of entry and exit, and also alerts users to gate obstruction and other issues. While the sheer strength of our Gate Operators is top tier, weâve built them with a host of valuable features to create the most robust Maximum Security line on the market. For reliable perimeter security built by experience, choose DKS.This assures your security gate is open the absolute minimum amount of time necessary.
Advantages Advantages
3 horse power.Up to 100 ft gates weighing as much as 5000 lb.Adjustable solid state speed control 1/2 to 2 ft/sec.
Applications Applications
Maximum Security applications only - such as industrial locations:Loading DocksFactoriesAirport Security AreasSea Ports, Etc.
Duty Cycle Type Duty Cycle Type
Continuous
Key Features Key Features
Direct driven limit nuts.Anti-tailgating feature.Adjustable mid-stop.Gate tracker reporting output.Ports for plug-in loop detectors.Two convenience outlets.Fail-secure operation includes crank for manual operation.Programming switches.Built-in reset switch.Built-in power On/Off switch.
Options Options
Chain tray kit (p/n 2601-270) is available in 10-ft lengths and is recommended on gates exceeding 20-ft in lengthRed/Green traffic signal provides a visual indication when it is OK for traffic to proceedPlug-in loop detectors.Heater kit for cold environments.Surge suppressors.
Specifications Alternating Current Ac Voltage
208 V | 230 V | 460 V
Specifications Anti Tailgate Feature
Yes
Specifications Class Of Operation
Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Direct Current Dc Convenience Open Option Availab
No
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Direct Driven Limit Switches for precise gate control
Specifications Manual Release
Fail-Secure/Crank
Specifications Maximum Gate Length
100 ft
Specifications Maximum Gate Weight
5000 lb
Specifications Maximum Speed
2 ft/s
Specifications Minimum Speed
1 ft/s
Specifications Motor Power
3 hp
Specifications Mounting Type
Pedestal9200-135 pedestal included.
Specifications Number Of Convenience Outlets
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 140 ºF
Specifications Partial Open Limit
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
Electronic
Specifications Standards
Edison Testing Laboratories (ETL) Listed
Specifications Usage
Industrial | Maximum Security
Technical Specifications Technical Specifications
Primary reduction is provided by a 30:1 gear running in a continuous oil bathOperator is shipped with chain brackets, hardware and 20-feet of #60; chainAdjustable solid state speed control, 1/2 to 2 Ft./secHousing is G90 galvanized steel painted charcoal grey with stainless steel access doorGATE TRACKERTM Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control systemMaximum gate length 75-feet.Maximum gate weight 5000 Lb., #60; chain. (Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)Adjustable solid state speed control, 1/2 to 2 Ft./sec.Slow start / slow stop function.30:1 gear reduction running in a continuous oil bath.3 HP continuous-duty motor.208, 230, 460 VAC three-phase.Operator is shipped with chain brackets and 20-feet of #60; chain.Class III and IV applications only.ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions w/pedestal: 31.5 "W x 47 "H x 16.5 "D
