3 Inch Aluminum Line Vac Conveyor
3 Inch Aluminum Line Vac Conveyor
SKU:LIN-95e153
Efficiently convey diverse materials with the 3 Inch Aluminum Line Vac Conveyor for industrial applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
3 Inch Aluminum Line Vac Conveyor
$199.99
Quantity: 1
Claim Your Seller Account
3 Inch Aluminum Line Vac Conveyor
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

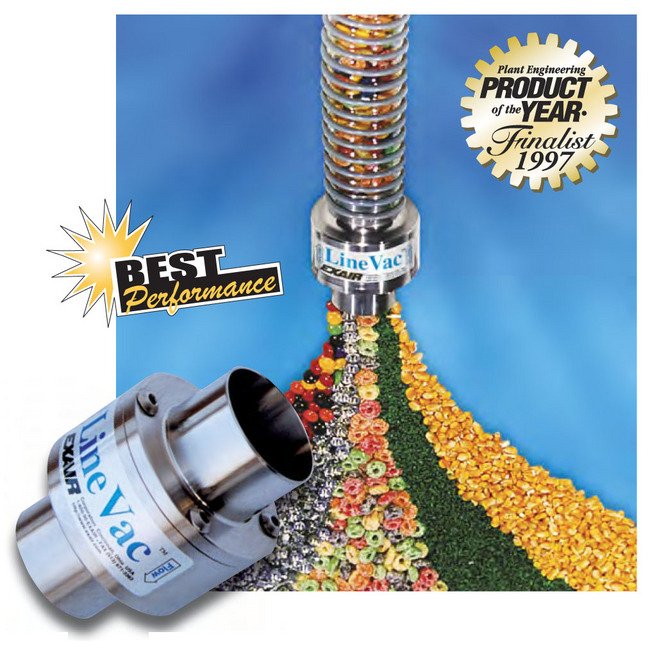

The 3 Inch Aluminum Line Vac Conveyor is a cost-effective solution for efficiently conveying a wide range of materials, from plastic pellets to small parts with precision. Made of durable aluminum, this conveyor accommodates various transfer applications and features a compact design with large throat diameters for optimal throughput. Its compatibility with standard hoses or tubes, along with the absence of moving parts, ensures reliable performance. Ideal for industrial use, this conveyor offers high efficiency and quiet operation, making it a versatile choice for chip removal, part transfer, and waste removal applications.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Compact | Eleven Sizes | Fits Standard Hose or Tube | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
68.50 SCFM | 1939 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Fair
Specifications Dimension E
2.75 in | 70 mm
Specifications Dimension F
1.75 in | 45 mm
Specifications Dimension H
1.63 in | 41 mm
Specifications Dimension I
1.20 in | 31 mm
Specifications Dimension J
2.41 in | 61 mm
Specifications Dimension K
0.41 in | 10 mm
Specifications Dimension L
1.44 in | 37 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
2.63 in | 67 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Hose Size
3 in | 76 mm
Specifications Inlet Size
3 in | 76 mm
Specifications Inside Diameter
2.75 in | 70 mm
Specifications Material
Aluminum
Specifications Outlet Diameter
3 in | 76 mm
Specifications Outside Diameter
4.25 in | 108 mm
Specifications Overall Length
5.63 in | 143 mm
Specifications Overall Width
3.25 in | 83 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
275 ºF | 135 ºC
Specifications Vacuum Pressure
-14.7 inWc | -4 kPa
