3 Inch (in) Overall Height and 11/16 Inch (in) Center Hole Diameter High Voltage Wet Process Spool Insulator
3 Inch (in) Overall Height and 11/16 Inch (in) Center Hole Diameter High Voltage Wet Process Spool Insulator
SKU:SPO-818f46
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
3 Inch (in) Overall Height and 11/16 Inch (in) Center Hole Diameter High Voltage Wet Process Spool Insulator
$49.99
Quantity: 1
Claim Your Seller Account
3 Inch (in) Overall Height and 11/16 Inch (in) Center Hole Diameter High Voltage Wet Process Spool Insulator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

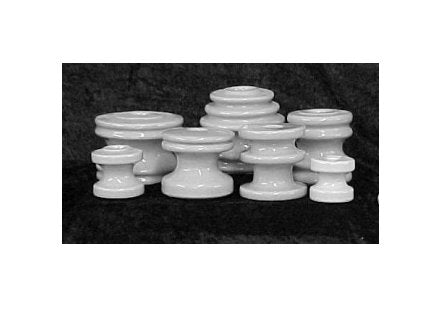

Full product range used for general electrical distribution. Porcelain spools meet applicable ANSI standards. The wet process is employed for high voltage applications; the dry process for low voltage applications.
Product Specifications
Additional Information
Akron Porcelain & Plastics Company has an extensive inventory of standard molded ceramic products for use in foundry and electrical applications. These products include extruded tubes and molded pouring cups for the investment casting industry. In addition, we maintain a complete line of strainer cores for use in the investment and sand casting industries as well as Cerama-Nut® Wire Connectors for electrical terminations (UL approved size is available).
Electrical Values Horizontal Low Frequency Wet Flashover
15 kV
Electrical Values Low Frequency Dry Flashover
25 kV
Electrical Values Vertical Low Frequency Wet Flashover
12 kV
Mechanical Values Transverse Strength
3000 lb
Specifications Available Colors
Brown | Gray (Standard) | White | Yellow Glaze

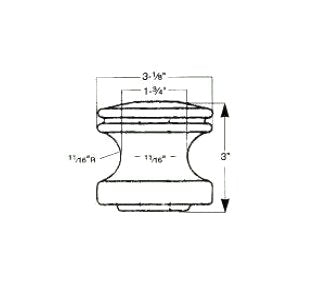

Specifications Center Hole Diameter
11/16 in
Specifications Groove Radius
11/16 in
Specifications Industry Standards
American National Standards Institute (ANSI) C29.3 CLASS 53
Specifications Overall Diameter
3-1/8 in
Specifications Overall Height
3 in
Specifications Package Type
Carton
Specifications Package Weight
60 lb
Specifications Quantity
50
Specifications United States Of America Usa Standard Class
53-2
