3-Inch Inlet Diameter Light Duty Line Vac Conveyor

Name: 3-Inch Inlet Diameter Light Duty Line Vac Conveyor
Brand: Exair LLC
SKU: LIG-0fbd30
Price: 299.99 USD
Availability: OutOfStock

SKU:LIG-0fbd30

Efficiently convey materials over short distances with the durable and quiet 3-Inch Inlet Diameter Light Duty Line Vac Conveyor by EXAIR. Ideal for office, industrial, and manufacturing applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

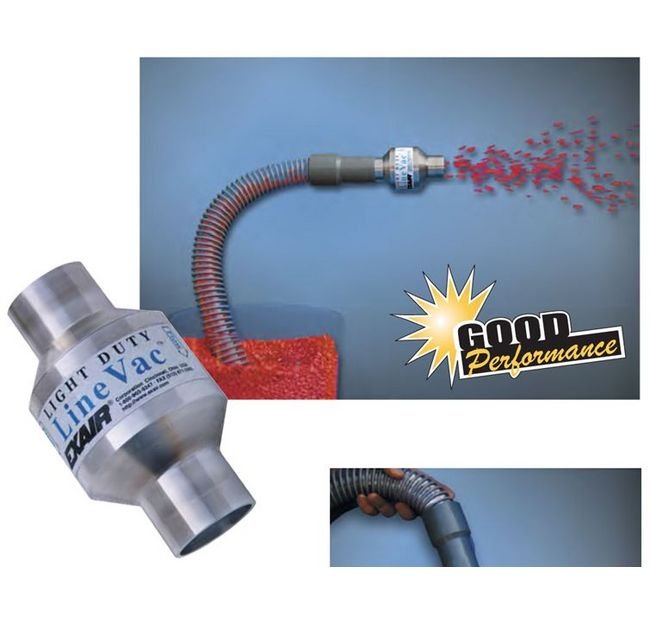

The 3-Inch Inlet Diameter Light Duty Line Vac Conveyor, part of the Light Duty Line Vac Conveyors series by EXAIR, is purpose-built to efficiently convey small volumes of materials over short distances. With a Pressure of 80 psig (5.5 bar) and an Inlet Size of 3 inches (76 mm), this conveyor is ideal for applications such as Chip Removal, Fiber Tensioning, and Hopper Loading. Its aluminum construction ensures durability, while the compact design and compatibility with standard hoses or tubes make it versatile for various material conveying needs. The absence of moving parts and quiet operation enhance workplace safety and efficiency, offering a reliable and cost-effective solution for handling scrap, trim, and bulk materials.

Product Specifications

Specifications Advantages

Specifications Air Consumption

45 SCFM | 1274 SLPM

Specifications Applications

Specifications Dimension E

2.75 in | 70 mm

Specifications Dimension F

1.06 in | 27 mm

Specifications Dimension G

3/8 NPT

Specifications Inlet Size

3 in | 76 mm

Specifications Inside Diameter

2.75 in | 70 mm

Specifications Outlet Diameter

3 in | 76 mm

Specifications Outside Diameter

4.25 in | 108 mm

Specifications Overall Length

5.06 in | 129 mm

Specifications Pressure

80 psig | 5.5 bar

3-Inch Inlet Diameter Light Duty Line Vac Conveyor
