3 Inch Interference Gasket Joint Iron Pipe Size (IPS) Conduit
3 Inch Interference Gasket Joint Iron Pipe Size (IPS) Conduit
SKU:BRI-64a77d
Durable 3 Inch IPS Conduit with Triple Seal Gasket for watertight protection and high strength. Ideal for institutional and government use.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
3 Inch Interference Gasket Joint Iron Pipe Size (IPS) Conduit
$34.99
Quantity: 1
Claim Your Seller Account
3 Inch Interference Gasket Joint Iron Pipe Size (IPS) Conduit
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3 Inch Interference Gasket Joint Iron Pipe Size Conduit offers a robust aboveground solution with a triple seal gasket system for watertight protection. Featuring a high pull out strength of 2,000 lbs and UL/CSA certifications, this conduit ensures reliable performance. Manufactured by Champion Fiberglass®, Inc., it meets stringent quality standards, making it ideal for institutional and government applications.

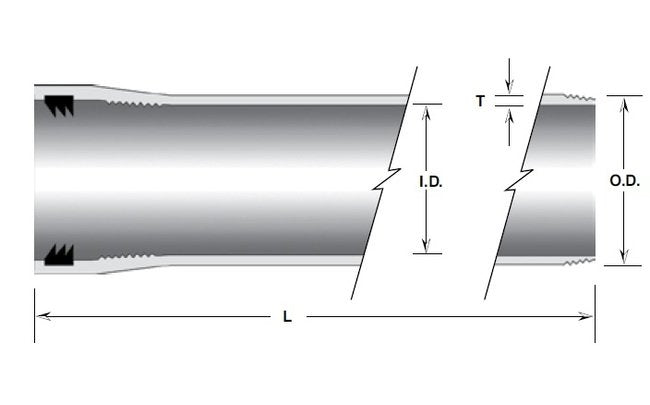

Product Specifications
Dimesional Attributes Average Outside Diameter
3.500 in | 89 mm
Dimesional Attributes Inside Diameter Min
3.360 in | 85 mm
Dimesional Attributes Length L
20 ft | 6.1 m
Dimesional Attributes Nominal Size
3 in | 76 mm
Dimesional Attributes Nominal Wall Thickness
0.070 in | 2 mm
Dimesional Attributes Outside Diameter Tolerance
-0.018 in | 0.028 in | -0.4 mm | 0.7 mm
Features
Most Commonly used.
Gasket Joint Triple Seal
The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL), Canadian Standards Association (CSA)
Specifications Type
Iron Pipe Size (IPS) Aboveground Straight Conduit with Gasket Joint
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.60 lb/ft | 0.83 kg/m
