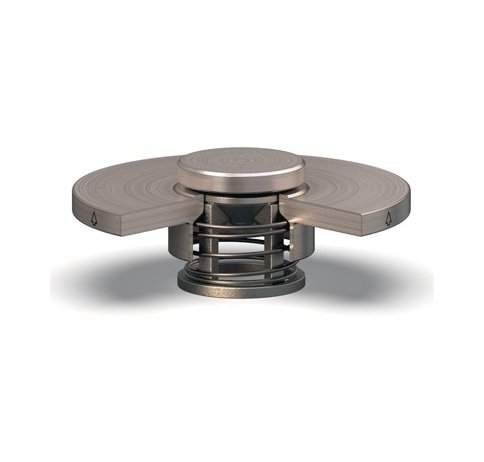

3-Inch LP Style Lined Pipe Insert Check Valve
3-Inch LP Style Lined Pipe Insert Check Valve
SKU:LPS-6c8dba
Premium 3" LP Style Lined Pipe Insert Check Valve for seamless installation in demanding applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
3-Inch LP Style Lined Pipe Insert Check Valve
$159.99
Quantity: 1
Claim Your Seller Account
3-Inch LP Style Lined Pipe Insert Check Valve
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3-Inch LP Style Lined Pipe Insert Check Valve is a premium solution for lined piping systems, offering seamless installation between flanges without the need for gaskets. Crafted from Alloy C-276 or fluoropolymer materials, this valve ensures reliable performance in demanding applications. With a standard spring made of Alloy C-276 and options for custom materials, it can also function as a low-pressure relief valve or vacuum breaker. Made in the USA, this valve combines quality craftsmanship with versatile functionality.
Product Specifications
Note
Made in USA.
Specifications Body Material
Alloy C-276 = HC | Polytetrafluoroethylene (PTFE) = TF
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
3 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
20 psig
Specifications Non Shock Pressure Rating For Alloy C 276 Hc Valv
American National Standards Institute (ANSI) Class 150 and 300
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF (For Polytetrafluoroethylene (PTFE) Valves, "TF" O-Ring seats are not available, "MT" seats mean plastic to plastic. (No o-ring))
Specifications Size Code
M
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
316 Stainless Steel = SS | Alloy 400 or Monel® = MO | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
LP
