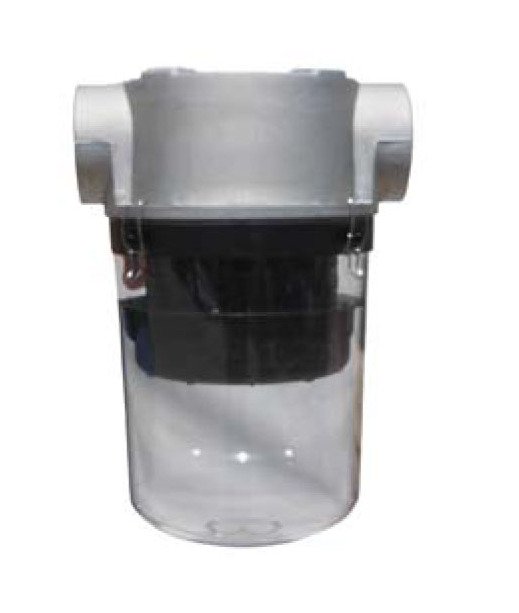

3 Inch See-Through Inlet Vacuum Air Filter for 300 CFM
3 Inch See-Through Inlet Vacuum Air Filter for 300 CFM
SKU:SEE-0b1ec4
Highly durable 3 Inch See-Through Inlet Vacuum Air Filter with optimal flow rate and heat resistance for extreme duty applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
3 Inch See-Through Inlet Vacuum Air Filter for 300 CFM
$129.99
Quantity: 1
Claim Your Seller Account
3 Inch See-Through Inlet Vacuum Air Filter for 300 CFM
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3 Inch See-Through Inlet Vacuum Air Filter is designed for extreme duty applications, boasting high heat resistance suitable for sterile environments. Crafted with durable polycarbonate bucket material, this filter can withstand a typical vacuum level of 1.3 x 1CV3 mbar. With a maximum see-through bucket temperature rating of 290 ºF and a flow rate of 300 ft³/min, this Spinmeister filter combines reliability and efficiency. Its compact design with an integrated inlet baffle maximizes space utilization, while the 'T' style minimizes piping requirements. Tested for impacts and fractures under full vacuum, this filter ensures minimal maintenance downtime and exceptional performance.
Product Specifications
Benefits 0
Maintenance checks are simplified with visual inspectionsReduce downtime by eliminating need to shut down system to check filterTested to withstand impacts and fractures at full vacuum
Features And Specifications 0
Complete filter assembly is resistant to electrical static build-upHigh tensile strength permits dimensional stabilityIncreased holding capacityCompact design for space restrictions; Minimal service area neededIntegrated Inlet BaffleInlet is above the element to Extend element life and maintenance intervals"T" style design Minimizes piping requirements"Drop-Down" housing for easy servicing and dirt containmentCT Series with carbon steel buckets now available in 2", 2-1/2", 5" and 6" connections!
Specifications Bucket Material
Polycarbonate
Specifications Filter Type
Spinmeister
Specifications Flow Rate
300 ft³/min
Specifications Maximum Complete Assembly Temperature Rating
220 ºF
Specifications Maximum See Through Bucket Temperature Rating
290 ºF
Specifications Size
3 in
Specifications Vacuum Level
1 x 103 mmHg | 1.3 x 1CV3 mbar
